A03ZR03ZR28H254A

Active

JST Sales America Inc.

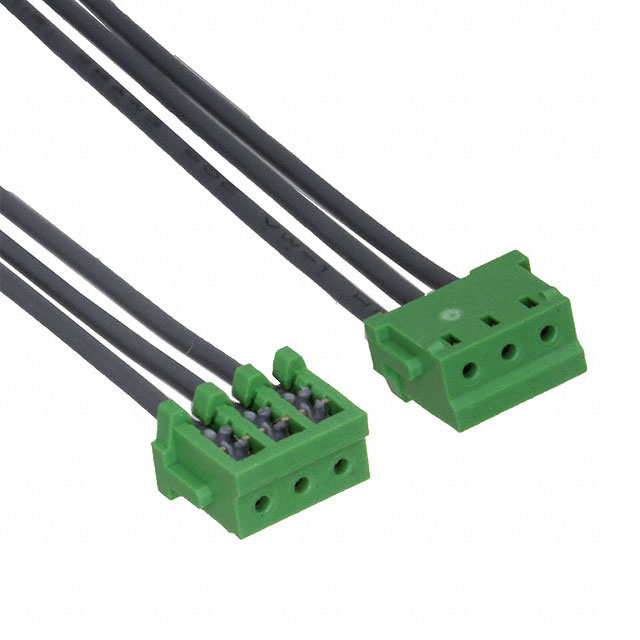

JUMPER 03ZR-8M-P - 03ZR-8M-P 10"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 03ZR-8M-P - 03ZR-8M-P 10"

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Length	Length	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Color	Cable Termination	Length [x]	Length [x]	Length [x]	Length	Length
JST Sales America Inc. A03ZR03ZR28H305B	Tin	1 ft	304.8 mm	1	Socket to Socket	0.059 "	1.5 mm	Gray Individual	IDC
JST Sales America Inc. A03ZR03ZR28H102A	Tin			1	Socket to Socket Reversed	0.059 "	1.5 mm	Gray Individual	IDC	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A03ZR03ZR28H254B	Tin	0.833 ft	254 mm	1	Socket to Socket	0.059 "	1.5 mm	Gray Individual	IDC				10 in
JST Sales America Inc. A03ZR03ZR28H51B	Tin	0.167 '	50.8 mm	1	Socket to Socket	0.059 "	1.5 mm	Gray Individual	IDC				2 "
JST Sales America Inc. A03ZR03ZR28H102B	Tin			1	Socket to Socket	0.059 "	1.5 mm	Gray Individual	IDC	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A03ZR03ZR28H51A	Tin	0.167 '	50.8 mm	1	Socket to Socket Reversed	0.059 "	1.5 mm	Gray Individual	IDC				2 "
JST Sales America Inc. A03ZR03ZR28H152B	Tin		152.4 mm	1	Socket to Socket	0.059 "	1.5 mm	Gray Individual	IDC				6 "	0.5 '
JST Sales America Inc. A03ZR03ZR28H152A	Tin		152.4 mm	1	Socket to Socket Reversed	0.059 "	1.5 mm	Gray Individual	IDC				6 "	0.5 '
JST Sales America Inc. A03ZR03ZR28H305A	Tin	1 ft	304.8 mm	1	Socket to Socket Reversed	0.059 "	1.5 mm	Gray Individual	IDC
JST Sales America Inc. A03ZR03ZR28H254A	Tin	0.833 ft	254 mm	1	Socket to Socket Reversed	0.059 "	1.5 mm	Gray Individual	IDC				10 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.833' (254.00mm, 10.00")

Technical documentation and resources
