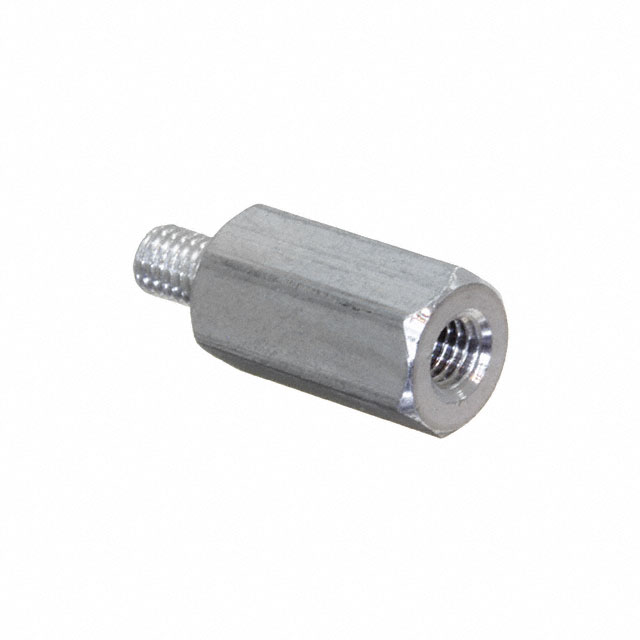

M2146-3005-AL

Active

RAF Electronic Hardware

6MM HEX X 11MM X M3 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

6MM HEX X 11MM X M3 THD

Technical Specifications

Parameters and characteristics for this part

Part	Type	Between Board Height	Between Board Height	Threaded/Unthreaded	Material	Length - Overall	Length - Overall	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Screw, Thread Size	Gender	Plating	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]
RAF Electronic Hardware M2146-4007-SS-20	Hex Standoff	0.433 in	11 mm	Threaded	Stainless Steel	20.53 mm	0.808 in	0.236 in	6 mm	M4x0.7	Female Male	Passivated
RAF Electronic Hardware M2146-2545-SS	Hex Standoff	0.433 in	11 mm	Threaded	Stainless Steel			0.236 in	6 mm	M2.5x0.45	Female Male		0.589 in	14.96 mm
RAF Electronic Hardware M2146-3005-B	Hex Standoff	0.433 in	11 mm	Threaded	Brass			0.236 in	6 mm	M3x0.5	Female Male			15.76 mm	0.62 in
RAF Electronic Hardware M2146-4007-SS	Hex Standoff	0.433 in	11 mm	Threaded	Stainless Steel	20.53 mm	0.808 in	0.236 in	6 mm	M4x0.7	Female Male
RAF Electronic Hardware M2146-4007-B-5	Hex Standoff	0.433 in	11 mm	Threaded	Brass	20.53 mm	0.808 in	0.236 in	6 mm	M4x0.7	Female Male	Nickel
RAF Electronic Hardware M2146-3005-AL	Hex Standoff	0.433 in	11 mm	Threaded	Aluminum			0.236 in	6 mm	M3x0.5	Female Male			15.76 mm	0.62 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Aluminum 0.433" (11.00mm)

Technical documentation and resources

No documents available
