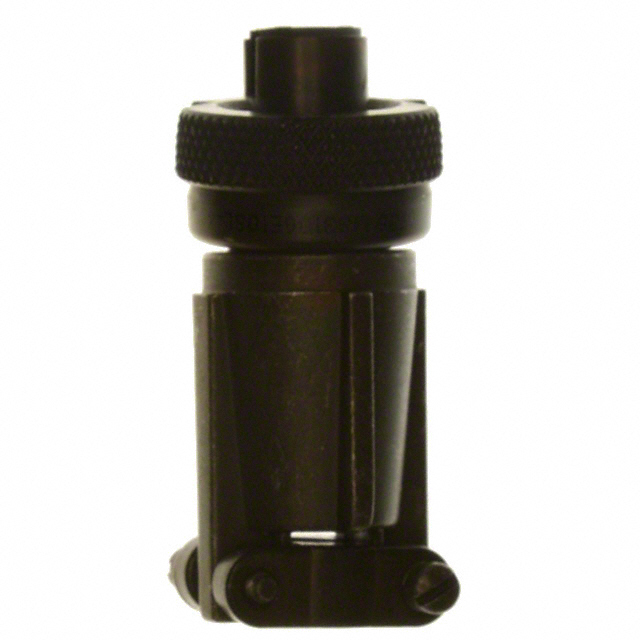

MS3106E10SL-4S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E10SL-4S

Applications	Military, Marine
Cable Opening [diameter]	7.14 mm
Cable Opening [diameter]	0.281 in
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-4
Shielding	Unshielded

Part	Features	Insert Material	Orientation	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Applications	Ingress Protection	Qualification	Shell Finish	Connector Type	Shell Size - Insert	Shell Material	Color	Contact Material	Contact Finish - Mating
Amphenol Industrial Operations MS3106E10SL-4S	Backshell Cable Clamp Coupling Nut	Neoprene	N	Unshielded	2	-55 °C	125 °C	Free Hanging (In-Line)	7.14 mm	0.281 in	Metal	Marine Military	Environment Resistant	MIL-5015	Olive Drab Chromate over Cadmium	Female Sockets Plug	10SL-4	Aluminum Alloy	Olive Drab	Copper Alloy	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
