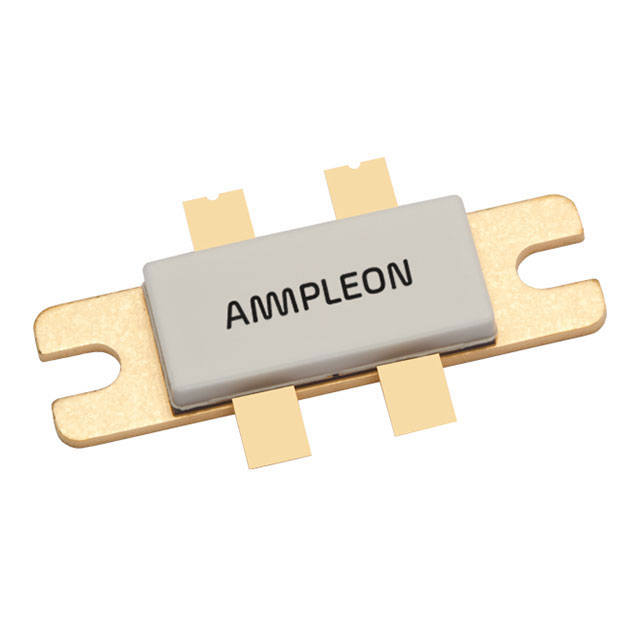

BLF6G22L-40BN,118

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM6

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM6

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Min]	Frequency [Max]	Gain	Voltage - Test	Voltage - Rated	Mounting Type	Power - Output	Package / Case	Supplier Device Package	Current Rating (Amps)	Current - Test	Configuration
Ampleon USA Inc. BLF6G22-45,135	2.11 GHz	2.17 GHz	18.5 dBi	28 V	65 V	Chassis Mount	2.5 W	SOT-608A	CDFM2
Ampleon USA Inc. BLF6G22LS-100,118	2.11 GHz	2.17 GHz	18.2 dB	28 V	65 V	Chassis Mount	25 W	SOT-502B	SOT502B	29 A	950 mA
Ampleon USA Inc. BLF6G22LS-130,118	2.11 GHz	2.17 GHz	17 dBi	28 V	65 V	Chassis Mount	30 W	SOT-502B	SOT502B	34 A	1.1 A
Ampleon USA Inc. BLF6G22L-40BN,112	2.11 GHz	2.17 GHz	19 dB	28 V	65 V	Chassis Mount	2.5 W	SOT-1112A	CDFM6		345 mA	Common Source Dual
Ampleon USA Inc. BLF6G22L-40P,118	2.11 GHz	2.17 GHz	19 dB	28 V	65 V	Chassis Mount	13.5 W		LDMOST	16 A	410 mA	Common Source Dual
Ampleon USA Inc. BLF6G22L-40P,112	2.11 GHz	2.17 GHz	19 dB	28 V	65 V	Chassis Mount	13.5 W		LDMOST	16 A	410 mA	Common Source Dual
Ampleon USA Inc. BLF6G22-180PN,112	2.11 GHz	2.17 GHz	17.5 dBi	32 V	65 V	Chassis Mount	50 W	SOT-539A	SOT539A		1.6 A	Common Source Dual
Ampleon USA Inc. BLF6G22LS-100,112	2.11 GHz	2.17 GHz	18.2 dB	28 V	65 V	Chassis Mount	25 W	SOT-502B	SOT502B	29 A	950 mA
Ampleon USA Inc. BLF6G22L-40BN,118	2.11 GHz	2.17 GHz	19 dB	28 V	65 V	Chassis Mount	2.5 W	SOT-1112A	CDFM6		345 mA	Common Source Dual
Ampleon USA Inc. BLF6G22-45,112	2.11 GHz	2.17 GHz	18.5 dBi	28 V	65 V	Chassis Mount	2.5 W	SOT-608A	CDFM2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 345 mA 2.11GHz ~ 2.17GHz 19dB 2.5W CDFM6
