AZSR180-1AE-12D
ActiveAmerican Zettler

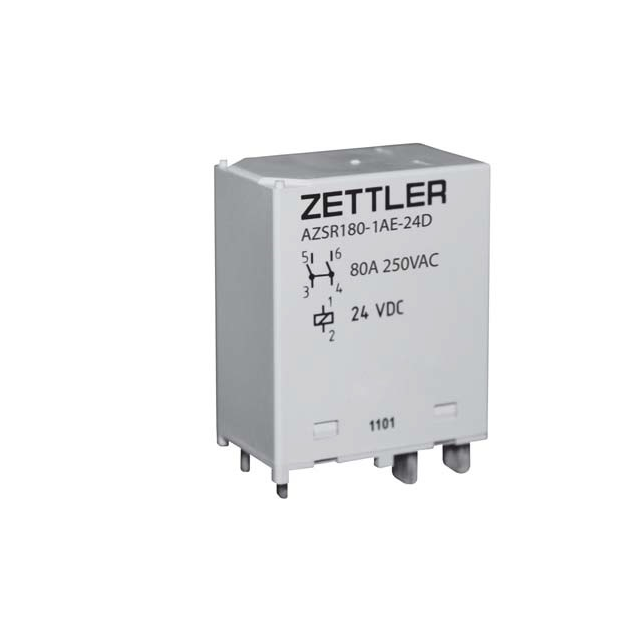

RELAY EV CHG SOLAR SPST 80A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZSR180-1AE-12D
ActiveAmerican Zettler
RELAY EV CHG SOLAR SPST 80A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZSR180-1AE-12D |
|---|---|
| Approval Agency | UL, VDE |
| Coil Current | 40 mA |
| Coil Insulation | Class F |
| Coil Resistance | 300 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 80 A |
| Load - Max Switching | 2400 W, 22160 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | EV Charging, Solar |
| Release Time | 5 ms |
| Switching Voltage | 150 VDC, 440 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.09 | |
| 10 | $ 16.97 | |||
| 30 | $ 16.12 | |||
| 50 | $ 15.27 | |||
| 100 | $ 14.42 | |||
| 250 | $ 13.15 | |||
| 500 | $ 12.30 | |||
Description
General part information
AZSR180 Series
EV Charging, Solar Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
