A98000-031

Active

Omnetics

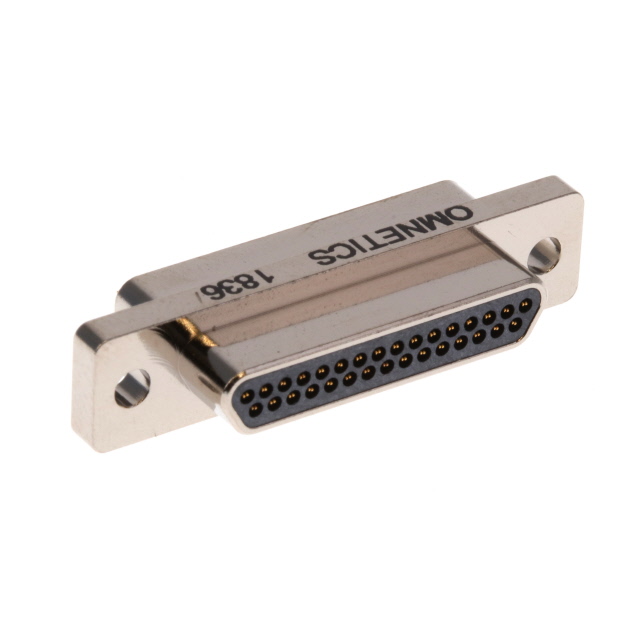

CONN MICRO-D PLUG 31POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 31POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A98000-031

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	31
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Type	Shielding	Color	2nd Connector	1st Connector	Length [x]	Length [x]	Number of Positions	Number of Rows	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Dielectric Material	Shell Material, Finish	Contact Type	Current Rating (Amps)	Connector Type	Contact Form
Omnetics A98100-031	50 µin	1.27 µm	Gold	D-Type Micro-D	Unshielded	Individual Multiple	Individual Wire Leads	Plug Male Pins	457.2 mm	1.5 ft	31
Omnetics A98000-031	50 µin	1.27 µm	Gold								31	2	D-Type Micro-D	0.05	0.05	Free Hanging (In-Line)	Copper Alloy	-55 °C	125 °C	Housing/Shell (Unthreaded)	Thermoplastic	Aluminum Electroless Nickel Plated	Signal	3 A	Male Pins Plug	Stamped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position D-Type, Micro-D Plug, Male Pins Connector
