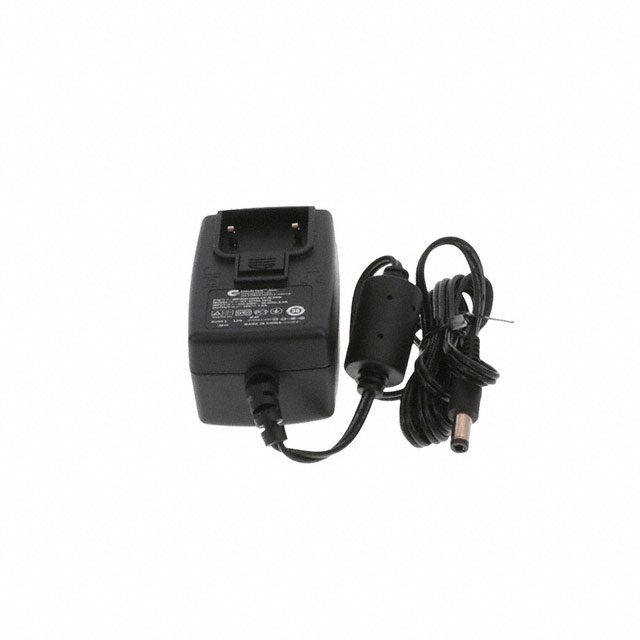

WR9QH1000LCP-N(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 18V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 18V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QH1000LCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	LPS, CCC, CB, RCM, CE, BSMI, EAC, PSE, VCCI, cULus, UKRSepro, FCC
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	2.91 "
Size / Dimension [x]	74 mm
Size / Dimension [y]	1.71 in
Size / Dimension [y]	43.5 mm
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	18 V

Part	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Voltage - Output	Polarization	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [x]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Form	Approval Agency	Efficiency	Current - Output (Max) [Max]	Applications	Input Connector
GlobTek, Inc. WR9QH1000LCP-N(R6B)	60950-1 62368-1	90 VAC	264 VAC	75 mW	18 V	Positive Center	1.71 in	1.34 in	2.91 "	43.5 mm	34 mm	74 mm	Multi-Blade (Sold Separately)	1.83 m	72 in	Barrel Plug	2.5 mm 5.5 mm	11 mm	International	40 °C	0 °C	18 W	Wall Mount (Class II)	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI	CoC Tier 2 Level VI	1 A	ITE (Commercial)	Multi-Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
