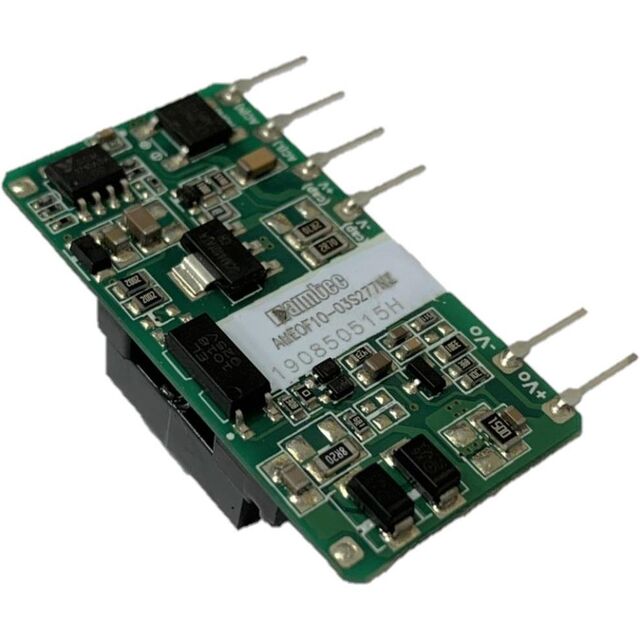

AMEOF10-05S277NZ

Active

aimtec

AC/DC CONVERTER 5V 10W

Search across all available documentation for this part.

Active

aimtec

AC/DC CONVERTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	AMEOF10-05S277NZ

Applications	Household Appliances, ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	76 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SIP Module, 6 Leads
Power (Watts)	10 W
Size / Dimension [x]	44.5 mm
Size / Dimension [x]	1.75 "
Size / Dimension [y]	0.59 in
Size / Dimension [y]	15 mm
Size / Dimension [z]	24 mm
Size / Dimension [z]	0.94 in
Type	Open Frame
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	5 V

Part	Line Regulation	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Load Regulation	Mounting Type	Type	Applications	Power (Watts)
aimtec AMEOF10-05S277NZ	0.5 %	2 A	5 V	85 VAC 100 V	305 VAC 430 VDC	1	76 %	24 mm	0.59 in	44.5 mm	1.75 "	0.94 in	15 mm	16-SIP Module 6 Leads	85 °C	-40 °C	1 %	Through Hole	Open Frame	Household Appliances ITE (Commercial)	10 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 5V 2A 85 ~ 305 VAC, 100 ~ 430 VDC Input
