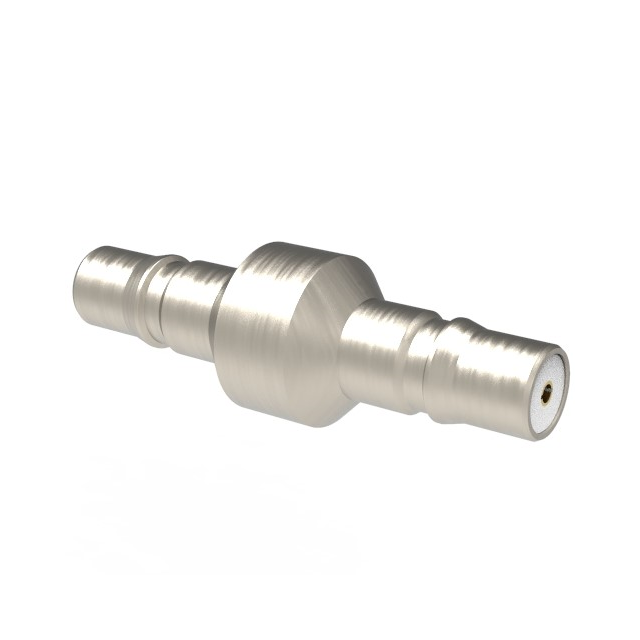

AD-QMAJQMAJ-1
ActiveAmphenol RF
QMA JACK TO QMA JACK ADAPTER 50
Deep-Dive with AI
Search across all available documentation for this part.
AD-QMAJQMAJ-1
ActiveAmphenol RF
QMA JACK TO QMA JACK ADAPTER 50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-QMAJQMAJ-1 |
|---|---|
| Adapter Series | QMA to QMA |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | QMA Jack, Female Socket |
| Convert To (Adapter End) | QMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.18 | |
| 10 | $ 22.05 | |||
| 25 | $ 21.10 | |||
| 50 | $ 20.42 | |||
| 100 | $ 19.74 | |||
| 250 | $ 18.65 | |||
| 500 | $ 18.10 | |||
Description
General part information
AD-QMA Series
Adapter Coaxial Connector QMA Jack, Female Socket To QMA Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
