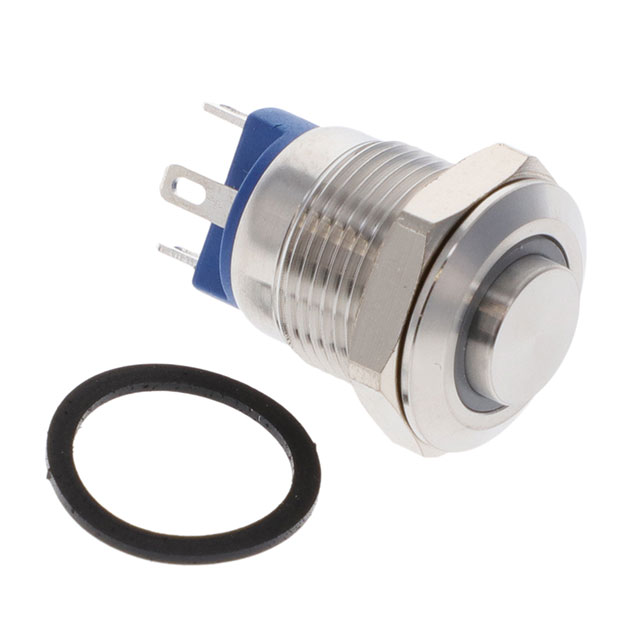

FHNESBBN

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	FHNESBBN

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Blue
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

Part	Actuator Marking	Actuator Type	Mounting Type	Current Rating (Amps)	Mechanical Life	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Circuit	Termination Style	Features	Voltage Rating - DC	Switch Function	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Illumination Type, Color
CIT Relay and Switch FHNESBBN	No Marking	Button Round	Panel Mount Front	2 A	100000 Cycles	12 mm	Silver	SPST	Solder Lug	Stainless Steel	48 V	Off-Mom	50000 Cycles	55 °C	-25 °C	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Blue LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal, Illuminated Panel Mount, Front
