574102B00000G

Active

Boyd Laconia, LLC

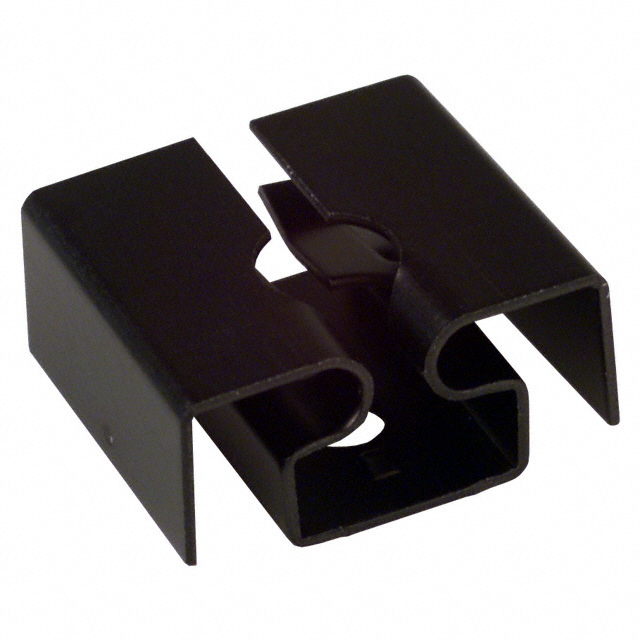

HEATSINK TO-220 CLIP-ON BLK

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-220 CLIP-ON BLK

Technical Specifications

Parameters and characteristics for this part

Specification	574102B00000G

Attachment Method	Clip
Fin Height	0.395 in
Fin Height	10.03 mm
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1.5 W, 40 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W
Thermal Resistance @ Natural	23.2 °C/W
Type	Board Level
Width [x]	21.84 mm
Width [x]	0.86 in

Part	Length	Length	Thermal Resistance @ Natural	Power Dissipation @ Temperature Rise	Type	Package Cooled	Width [x]	Width [x]	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Material Finish	Shape
Boyd Laconia, LLC 574102B00000G	19.05 mm	0.75 in	23.2 °C/W	1.5 W 40 °C	Board Level	TO-220	21.84 mm	0.86 in	Clip	Aluminum	8 °C/W	0.395 in	10.03 mm	Black Anodized	Rectangular Fins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 1.5W @ 40°C Board Level
