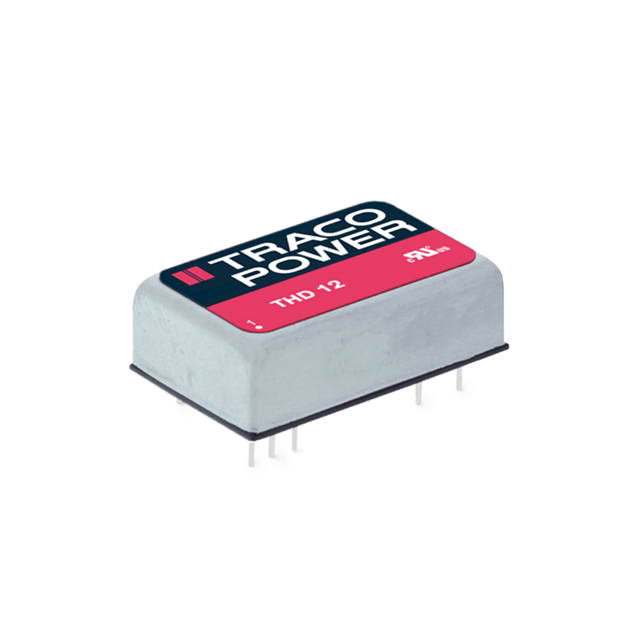

THD 12-4810

Active

Traco Power

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THD 12-4810

Active

Traco Power

DC DC CONVERTER 3.3V 12W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THD 12-4810

Applications	ITE (Commercial)
Current - Output (Max) [Max]	3.5 A
Efficiency	85 %
Features	SCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 8 Leads
Power (Watts)	12 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

THD 12 Series

Part	Mounting Type	Type	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
Traco Power THD 12-2413WI	Through Hole	Isolated Module	1	36 V	ITE (Commercial)	15 V	85 %	800 mA	9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C
Traco Power THD 12-2412WI	Through Hole	Isolated Module	1	36 V	ITE (Commercial)	12 V	85 %	1 A	9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C
Traco Power THD 12-2410WI	Through Hole	Isolated Module	1	36 V	ITE (Commercial)	3.3 V	84 %	3.5 A	9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C
Traco Power THD 12-1222	Through Hole	Isolated Module	2	18 V	ITE (Commercial)	12 V	87 %		9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C	500 mA	500 mA	-12 V
Traco Power THD 12-1223	Through Hole	Isolated Module	2	18 V	ITE (Commercial)	15 V	87 %		9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C	400 mA		-15 V	400 mA
Traco Power THD 12-2421WI	Through Hole	Isolated Module	2	36 V	ITE (Commercial)	5 V			9 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C			-5 V		1.2 A	1.2 A
Traco Power THD 12-4810	Through Hole	Isolated Module	1	75 V	ITE (Commercial)	3.3 V	85 %	3.5 A	36 V	1.5 kV	OVP Remote On/Off SCP UVLO	12 W	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24-DIP Module 8 Leads	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 41.40
		10	$ 36.55
		25	$ 35.34
		50	$ 34.46
		100	$ 33.59
		250	$ 32.48
		500	$ 29.05

Description

General part information

THD 12 Series

Isolated Module DC DC Converter 1 Output 3.3V 3.5A 36V - 75V Input
