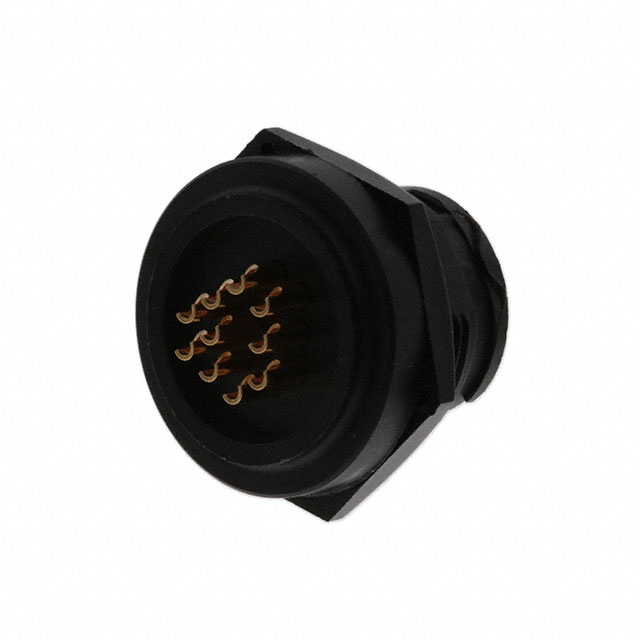

W4282-10PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 10POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
W4282-10PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 10POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W4282-10PG-300 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 10 |
| Orientation | E |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.60 | |
| 10 | $ 16.12 | |||
| 25 | $ 15.28 | |||
| 50 | $ 15.06 | |||
| 100 | $ 13.29 | |||
| 300 | $ 12.40 | |||
| 500 | $ 12.14 | |||
Description
General part information
W4282-10 Series
10 Position Circular Connector Receptacle, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
