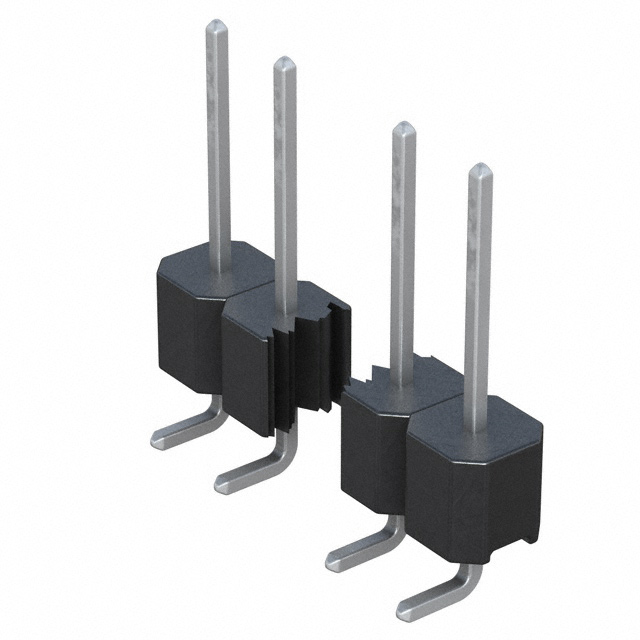

PREC019SBBN-M71RC

Unknown

Sullins Connector Solutions

BOARD CONNECTOR, 19 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PREC019SBBN-M71RC

Unknown

Sullins Connector Solutions

BOARD CONNECTOR, 19 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PREC019SBBN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PREC019 Series

Part	Style	Insulation Material	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Shrouding	Insulation Color	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Connector Type	Contact Material	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PREC019DBAN-M71RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	38	0.197 in	5 mm	3 A	Solder	Unshrouded	Black	Through Hole Right Angle	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin	2.54 mm	0.1 in	Male Pin	0.23 in	5.84 mm	0.12 in	3.05 mm	Square	Breakaway Header	Brass	2
Sullins Connector Solutions PREC019SFAN-RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	19			3 A	Solder	Unshrouded	Black	Through Hole	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin			Male Pin	0.318 "		0.12 in	3.05 mm	Square	Breakaway Header	Brass	1	13.63 mm	0.537 "	8.08 mm	0.098 in	2.5 mm
Sullins Connector Solutions PREC019SACN-RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	19			3 A	Solder	Unshrouded	Black	Through Hole	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin			Male Pin	0.23 in	5.84 mm	0.32 in	8.13 mm	Square	Breakaway Header	Brass	1		16.47 mm		0.098 in	2.5 mm	0.648 in
Sullins Connector Solutions PREC019SABN-RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	19			3 A	Solder	Unshrouded	Black	Through Hole	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin			Male Pin	0.23 in	5.84 mm			Square	Breakaway Header	Brass	1		14.18 mm		0.098 in	2.5 mm	0.558 in	0.23 in	5.84 mm
Sullins Connector Solutions PREC019DAAN-RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	38			3 A	Solder	Unshrouded	Black	Through Hole	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin	2.54 mm	0.1 in	Male Pin	0.23 in	5.84 mm	0.12 in	3.05 mm	Square	Breakaway Header	Brass	2		11.39 mm		0.098 in	2.5 mm	0.448 in
Sullins Connector Solutions PREC019DFAN-RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	38			3 A	Solder	Unshrouded	Black	Through Hole	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin	2.54 mm	0.1 in	Male Pin	0.318 "		0.12 in	3.05 mm	Square	Breakaway Header	Brass	2	13.63 mm	0.537 "	8.08 mm	0.098 in	2.5 mm
Sullins Connector Solutions PREC019SBBN-M71RC	Board to Board Cable	Polybutylene Terephthalate (PBT)	Push-Pull	19			3 A	Solder	Unshrouded	Black	Through Hole Right Angle	All	-40 °C	105 ░C	0.1 in	2.54 mm	UL94 V-0	Tin			Male Pin	0.23 in	5.84 mm			Square	Breakaway Header	Brass	1				0.098 in	2.5 mm		0.22 in	5.58 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PREC019 Series

Connector Header Through Hole, Right Angle 19 position 0.100" (2.54mm)
