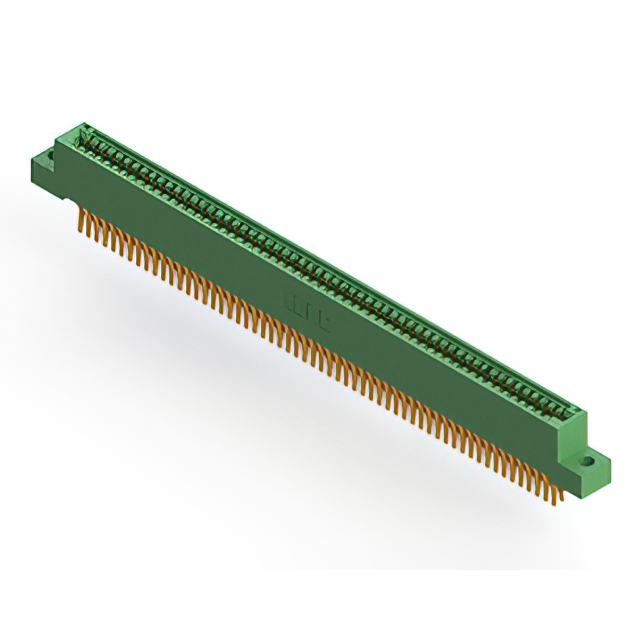

845-116-560-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-116-560-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 116POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-116-560-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 116 |
| Number of Positions/Bay/Row [custom] | 58 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-116 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination | Contact Material | Card Type | Number of Positions | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Gender | Material - Insulation | Number of Positions/Bay/Row [custom] | Termination Rows | Color | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Board Edge Straddle Mount | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | Card Extender | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Board Edge Straddle Mount | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Solder | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Dual | Wire Wrap | Copper Alloy | Non Specified - Dual Edge | 116 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Cantilever | Gold | Female | Diallyl Phthalate (DAP) | 58 | 2 | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 105.26 | |
Description
General part information
845-116 Series
116 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
