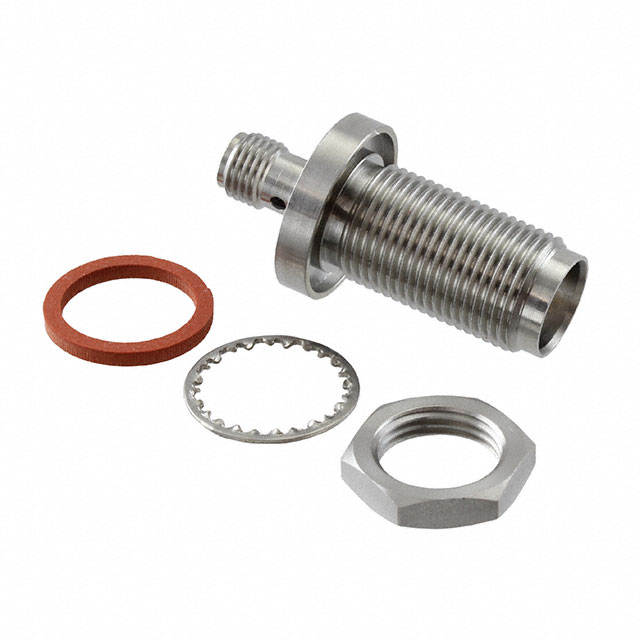

ADT-2793-TF-SMF-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT TNC JACK TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
ADT-2793-TF-SMF-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT TNC JACK TO SMA JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-2793-TF-SMF-02 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 101.54 | |
| 10 | $ 93.18 | |||
| 25 | $ 89.60 | |||
| 50 | $ 86.61 | |||
| 100 | $ 81.83 | |||
Description
General part information
ADT-2793 Series
Adapter Coaxial Connector TNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
