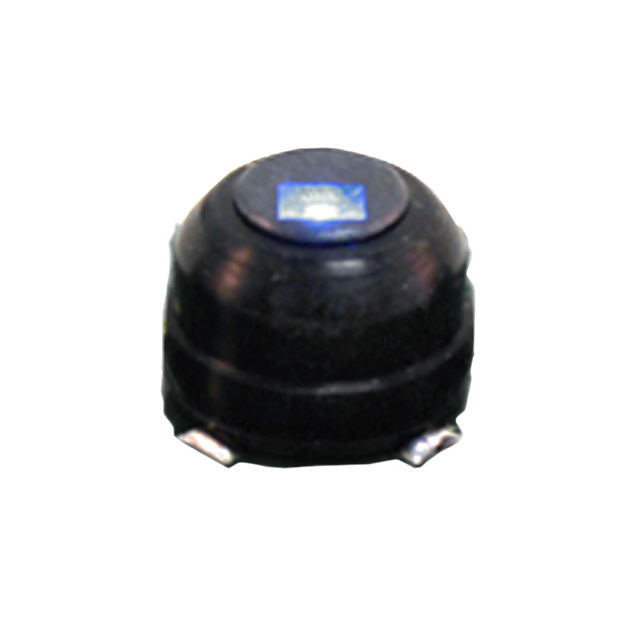

14SP-L1-02-W

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NO .1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	14SP-L1-02-W

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Features	Board Guide
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	2.85 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Switch Function	Off-Mom
Termination Style	SMD (SMT) Tab
Type	Keyswitch, Illuminated
Voltage Rating - DC	30 V

Part	Illumination Type, Color	Features	Actuator Marking	Switch Function	Color - Actuator/Cap	Circuit	Actuator Type	Termination Style	Illumination Voltage (Nominal)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Type	Current Rating (Amps)	Electrical Life	Ingress Protection	Mounting Type
Grayhill Inc. 14SP-L1-03-O	LED Orange	Board Guide	No Marking	Off-Mom	Clear	SPST-NO	Button Round	SMD (SMT) Tab	2 VDC	30 V	85 °C	-40 °C	100000 Cycles	Keyswitch Illuminated	100 mA	100000 Cycles	IP67 - Dust Tight Waterproof	Surface Mount
Grayhill Inc. 14SP-L1-02-W	LED White	Board Guide	No Marking	Off-Mom	Clear	SPST-NO	Button Round	SMD (SMT) Tab	2.85 VDC	30 V	85 °C	-40 °C	200000 Cycles	Keyswitch Illuminated	100 mA	200000 Cycles	IP67 - Dust Tight Waterproof	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Keyswitch, Illuminated Surface Mount
