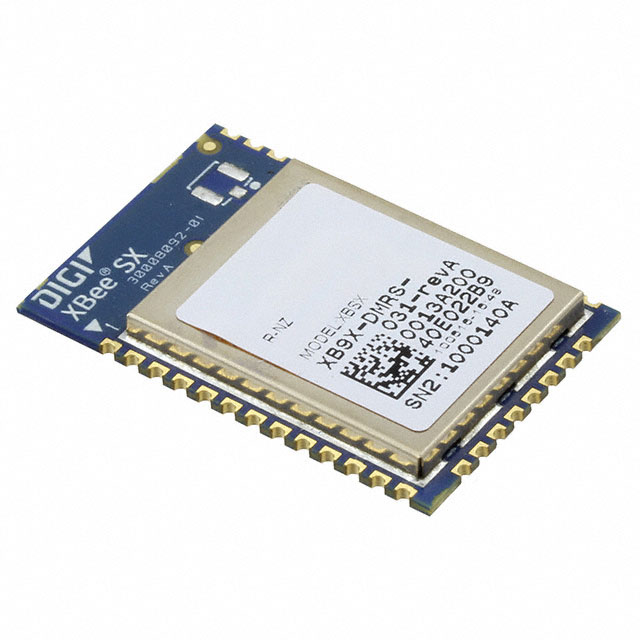

XB9X-DMRS-031

Active

Digi

RF TXRX MOD ISM<1GHZ SMD

Search across all available documentation for this part.

Active

Digi

RF TXRX MOD ISM<1GHZ SMD

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Min]	Frequency [Max]	Modulation	Power - Output	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Mounting Type	Data Rate	Current - Receiving	Serial Interfaces	Current - Transmitting	Sensitivity	Package / Case	Utilized IC / Part	Voltage - Supply [Min]	Voltage - Supply [Max]
Digi XB9XT-DPRS-001	902 MHz	928 MHz	FSK	13 dBm	General ISM < 1GHz	85 °C	-40 °C	Antenna Not Included	Surface Mount	125 kbps	40 mA	UART	55 mA	-110 dBm	Module
Digi XB9X-DMRS-001	902 MHz	928 MHz	GFSK	13 dBm	General ISM < 1GHz	85 °C	-40 °C	Antenna Not Included U.FL	Surface Mount	250 KBd	40 mA		55 mA	-113 dBm	Module	ADF7023	2.4 V	3.6 V
Digi XB9X-DMUS-001	902 MHz	928 MHz		13 dBm	General ISM < 1GHz	85 °C	-40 °C	Antenna Not Included U.FL	Surface Mount	250 KBd	40 mA		55 mA	-113 dBm	Module	ADF7023	2.4 V	3.6 V
Digi XB9X-DMUS-031	902 MHz	928 MHz	GFSK	13 dBm	General ISM < 1GHz	85 °C	-40 °C	Antenna Not Included U.FL	Surface Mount	250 KBd	40 mA		55 mA	-113 dBm	Module	ADF7023	2.4 V	3.6 V
Digi XB9X-DMRS-031	902 MHz	928 MHz	GFSK	13 dBm	General ISM < 1GHz	85 °C	-40 °C		Surface Mount	250 KBd	40 mA		55 mA	-113 dBm	Module	ADF7023	2.4 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	36	$ 48.07
