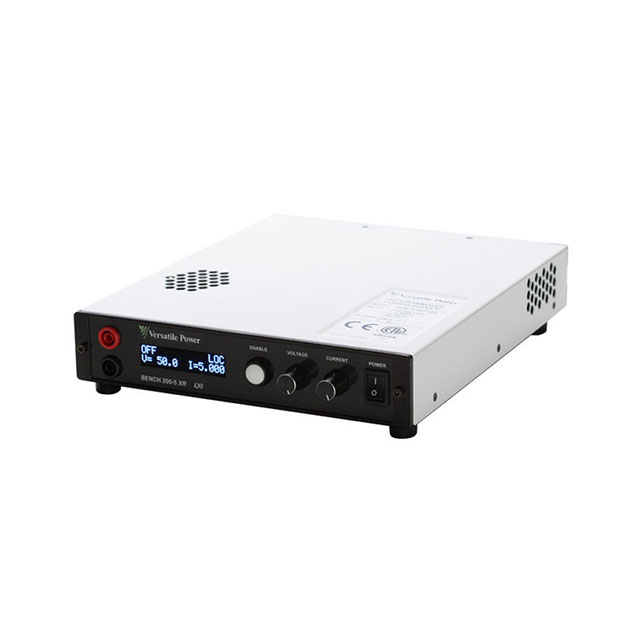

55-000033-01
ActiveVersatile Power
PWR SUP PROG 200VDC 5A 600W
Deep-Dive with AI
Search across all available documentation for this part.
55-000033-01
ActiveVersatile Power
PWR SUP PROG 200VDC 5A 600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 55-000033-01 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.1% + 60mA, 0.1% + 15mV |
| Current - Output [Max] | 5 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 15 mA |
| Current Regulation - Load | 15 mA |
| Display Type | LCD |
| Features | Programmable, USB 2.0, Rack Mount Requires Optional Hardware, LXI, Ethernet, Analog |
| Number of Outputs | 1 |
| Power (Watts) | 600 W |
| Ripple [Max] | 60 mV |
| Ripple [Min] | 20 mV |
| Size / Dimension [x] | 10.315 " |
| Size / Dimension [x] | 262 mm |
| Size / Dimension [y] | 8.819 " |
| Size / Dimension [y] | 224 mm |
| Size / Dimension [z] | 44 mm |
| Size / Dimension [z] | 1.732 in |
| Type | Bench/Rack Mount (AC to DC) |
| Voltage - Output [Max] | 200 V |
| Voltage - Output [Min] | 0 VDC |
| Voltage Regulation - Line | 15 mV |
| Voltage Regulation - Load | 15 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
55-000033 Series
0 ~ 200VDC Output Bench/Rack Mount (AC to DC) Power Supply LCD 0 ~ 5A Output 600W Features Analog, Ethernet, LXI, Programmable, USB 2.0, Rack Mount Requires Optional Hardware
Documents
Technical documentation and resources
No documents available
