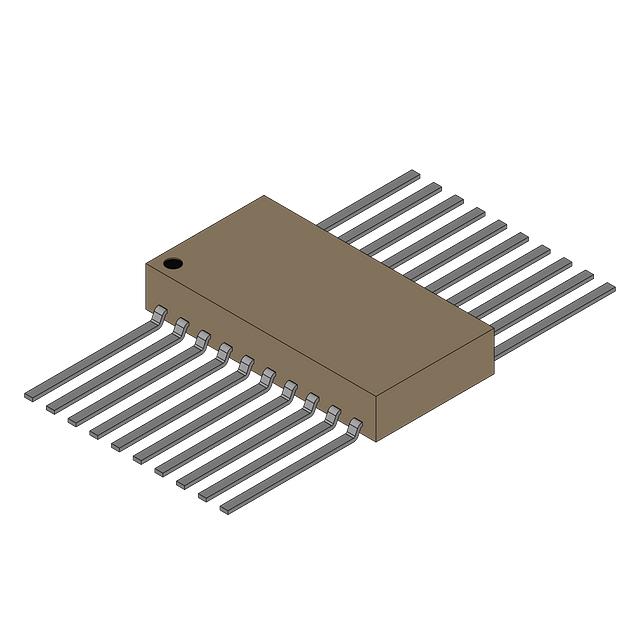

SN54LS377WB

Active

Advanced Micro Devices

D FLIP-FLOP, 8-FUNC

Search across all available documentation for this part.

Active

Advanced Micro Devices

D FLIP-FLOP, 8-FUNC

Technical Specifications

Parameters and characteristics for this part

Specification	SN54LS377WB

Clock Frequency	40 MHz
Current - Output High, Low [custom]	400 µA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Iq)	28 mA
Max Propagation Delay @ V, Max CL	27 ns
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Non-Inverted
Package / Case	20-CFlatPack
Supplier Device Package	20-CFlatPack
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Trigger Type	Current - Quiescent (Iq)	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Max Propagation Delay @ V, Max CL	Number of Elements	Mounting Type	Clock Frequency	Supplier Device Package	Type	Number of Bits per Element	Package / Case
Advanced Micro Devices SN54LS377WB	400 µA	8 mA	4.5 V	5.5 V	Positive Edge	28 mA	Non-Inverted	-40 °C	125 °C	27 ns	1	Surface Mount	40 MHz	20-CFlatPack	D-Type	8	20-CFlatPack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 13.00

General part information

Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-CFlatPack

Technical documentation and resources

No documents available
