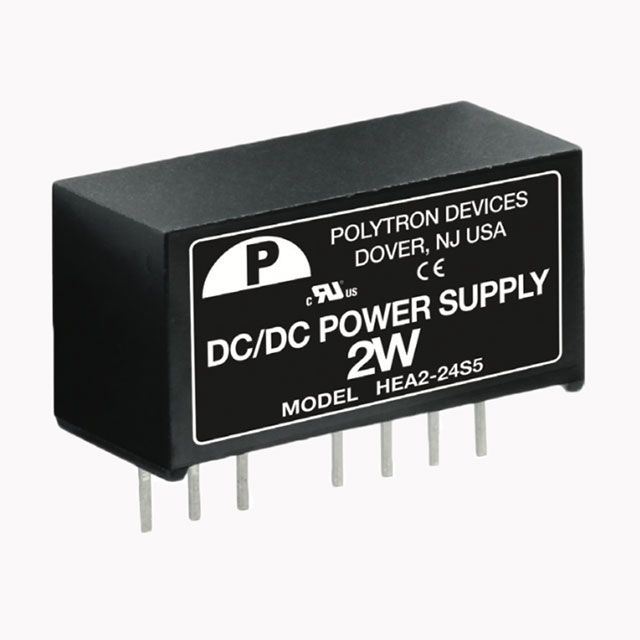

HEA2-5S15

Active

Daburn Electronics

DC DC CONVERTER 15V 2W

Deep-Dive with AI

Search across all available documentation for this part.

HEA2-5S15

Active

Daburn Electronics

DC DC CONVERTER 15V 2W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HEA2-5S15

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	134 mA
Efficiency	84 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.86 in
Size / Dimension [x]	21.8 mm
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.1 mm
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

HEA2-5 Series

Part	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	Power (Watts)	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Features	Package / Case	Package / Case	Approval Agency	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Daburn Electronics HEA2-5S12	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	12 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	84 %	167 mA
Daburn Electronics HEA2-5-5	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	5 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	2	81 %		-5 V
Daburn Electronics HEA2-5-12	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	12 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	2	85 %		-12 V	83 mA	83 mA
Daburn Electronics HEA2-5S5	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	5 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	81 %	400 mA
Daburn Electronics HEA2-5S33	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	3.3 V	ITE (Commercial)	1.7 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	78 %	500 mA
Daburn Electronics HEA2-5S9	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	9 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	84 %	222 mA
Daburn Electronics HEA2-5S15	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	15 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	84 %	134 mA
Daburn Electronics HEA2-5S24	Through Hole	4.5 V	-40 °C	105 C	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	24 V	ITE (Commercial)	2 W	Isolated Module	13.2 V	1.6 kV	Remote On/Off	8-SIP Module	7 Leads	CE	1	85 %	83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 27.08
		5	$ 26.87
		10	$ 26.66

Description

General part information

HEA2-5 Series

Isolated Module DC DC Converter 1 Output 15V 134mA 4.5V - 13.2V Input
