P3340010M4AA2

Active

Rosenberger

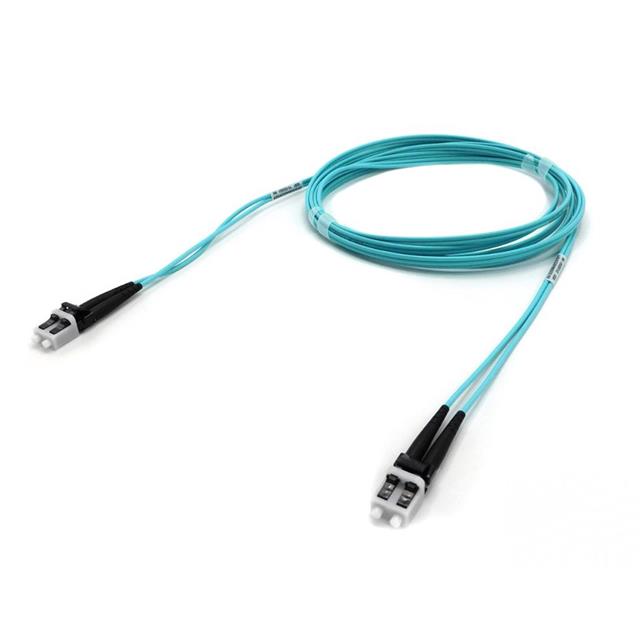

PATCHCORD,LCD-LCD,2OM3,2.0MM ZIP

Search across all available documentation for this part.

Active

Rosenberger

PATCHCORD,LCD-LCD,2OM3,2.0MM ZIP

Technical Specifications

Parameters and characteristics for this part

Specification	P3340010M4AA2

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius	30 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Twin Zip
Color - Connectors	Black
Features	Zipcord, Plenum
Fiber Type	50/125
Insertion Loss	0.15 dB
Length - Overall [x]	1 m
Length - Overall [x]	3.3 ft
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Type	Duplex, OM3, Multimode

Part	Cable Type	1st Connector	Features	2nd Connector	Bend Radius	Color - Connectors	Insertion Loss	Cable Diameter [diameter]	Cable Diameter [diameter]	Type	Fiber Type	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Rosenberger P3340010M4AA2	Twin Zip	LC Duplex	Plenum Zipcord	LC Duplex	30 mm	Black	0.15 dB	2 mm	0.08 in	Duplex Multimode OM3	50/125	1 m	3.3 ft	-10 °C	158 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Fiber Optic LC Duplex To LC Duplex 50/125 3.3' (1.0m)
