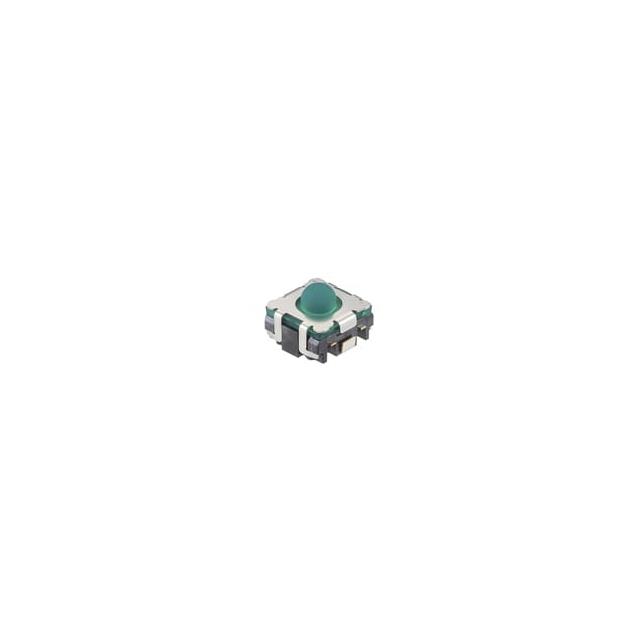

SKSUAAE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 16V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 16V

Technical Specifications

Parameters and characteristics for this part

Specification	SKSUAAE010

Actuator Height off PCB, Vertical [z]	3.85 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 16 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	250000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	357 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	5.3 mm
Outline [y]	5.4 mm
Switch Function	Off-Mom
Switch Travel	0.7 mm
Termination Style	J Lead

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Contact Rating @ Voltage	Mounting Type	Circuit	Switch Function	Illumination	Operating Force	Actuator Type	Ingress Protection	Actuator Height off PCB, Vertical [z]	Termination Style	Mechanical Life	Outline [y]	Outline [x]	Actuator Orientation
Alps Alpine SKSUAAE010	90 °C	-40 °C	0.7 mm	0.05 A 16 VDC	Surface Mount Right Angle	SPST-NO	Off-Mom	Non-Illuminated	357 gf	Standard	IP67 - Dust Tight Waterproof	3.85 mm	J Lead	250000 Cycles	5.4 mm	5.3 mm	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount, Right Angle
