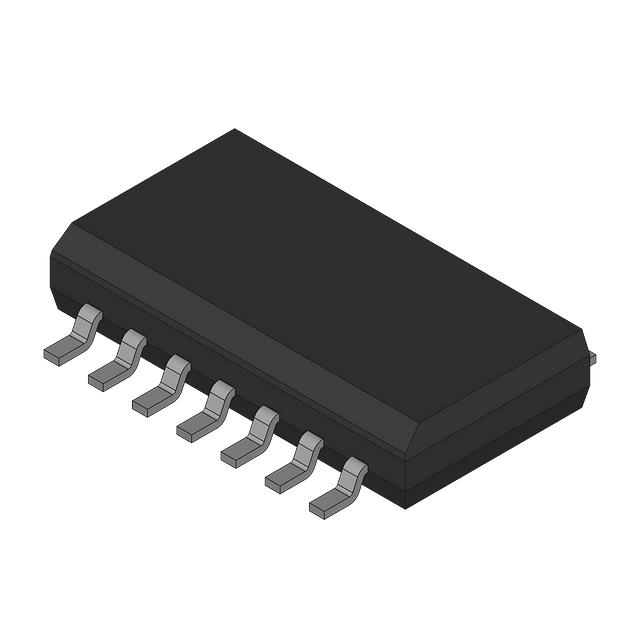

MC74VHC126ML1

Active

Motorola

IC BUFFER NON-INVERT 5.5V 14SOIC

Search across all available documentation for this part.

Active

Motorola

IC BUFFER NON-INVERT 5.5V 14SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	MC74VHC126ML1

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Output Type	3-State
Package / Case	14-SOIC
Package / Case [x]	0.209 "
Package / Case [y]	5.3 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Number of Bits per Element	Logic Type	Package / Case [x]	Package / Case	Package / Case [y]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Elements
Motorola MC74VHC126ML1	125 °C	-55 °C	Surface Mount	5.5 V	2 V	3-State	1	Buffer Non-Inverting	0.209 "	14-SOIC	5.3 mm	8 mA	8 mA	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1110	$ 0.27

General part information

Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-SOIC

Technical documentation and resources

No documents available
