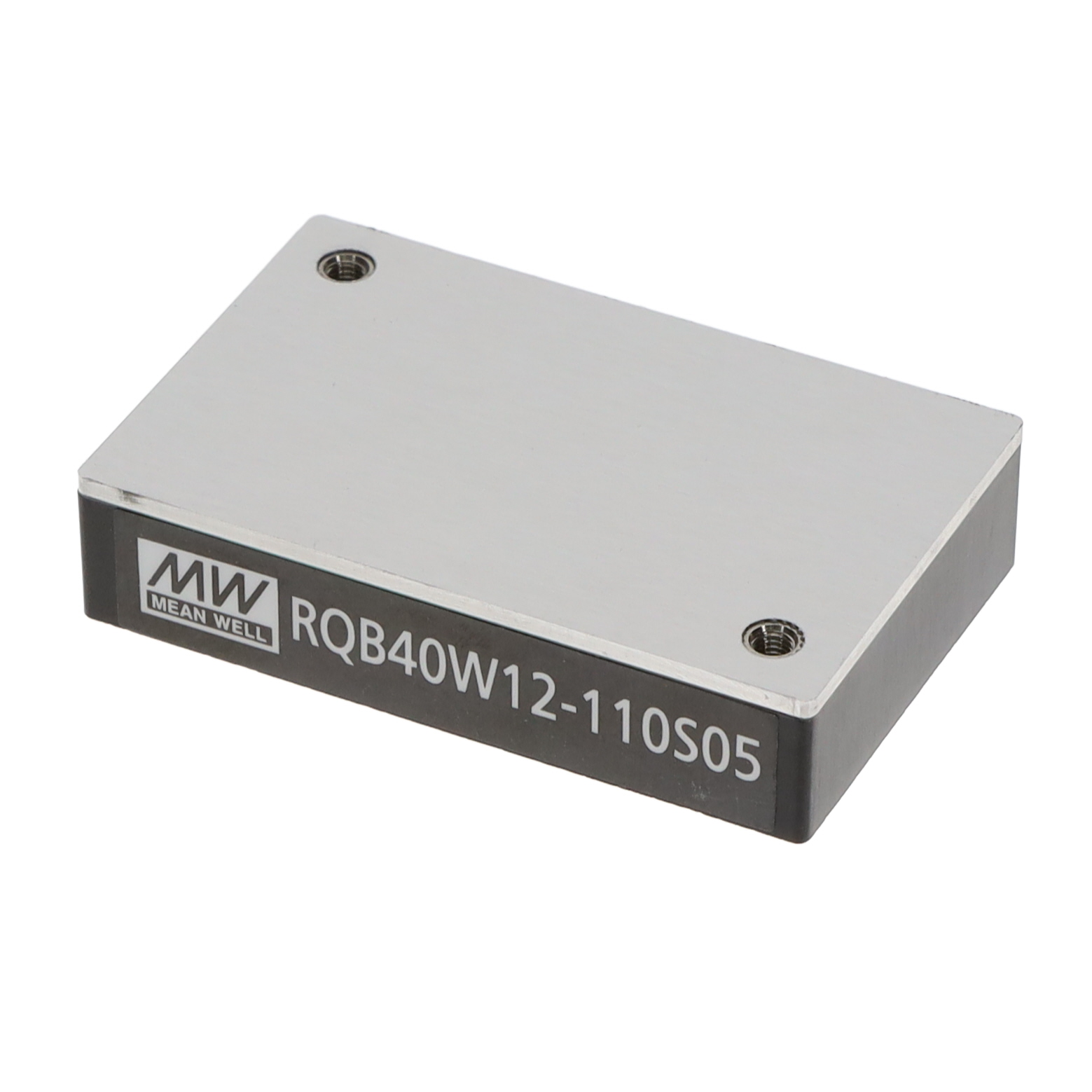

RQB40W12-110S05

Active

MEAN WELL USA Inc.

DC DC CONVERTER 5V 40W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER 5V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	RQB40W12-110S05

Applications	ITE (Commercial)
Approval Agency	EAC, UKCA, cURus, CE, CB
Current - Output (Max) [Max]	8 A
Efficiency	88 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	40 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Standard Number	62368-1
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	14 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Type	Voltage - Isolation	Voltage - Output 1	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Efficiency	Standard Number	Mounting Type	Number of Outputs	Approval Agency
MEAN WELL USA Inc. RQB40W12-110S48	Isolated Module	3000 V	48 V	Quarter Brick	40 W	160 V	Adjustable Output Remote On/Off	14 V	833 mA	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	ITE (Commercial)	-40 °C	90 °C	Quarter Brick	89 %	62368-1	Through Hole	1	CB CE cURus EAC UKCA
MEAN WELL USA Inc. RQB40W12-110S05	Isolated Module	3000 V	5 V	Quarter Brick	40 W	160 V	Adjustable Output Remote On/Off	14 V	8 A	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	ITE (Commercial)	-40 °C	90 °C	Quarter Brick	88 %	62368-1	Through Hole	1	CB CE cURus EAC UKCA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 87.68

General part information

Isolated Module DC DC Converter 1 Output 5V 8A 14V - 160V Input
