0346950101

Active

Molex

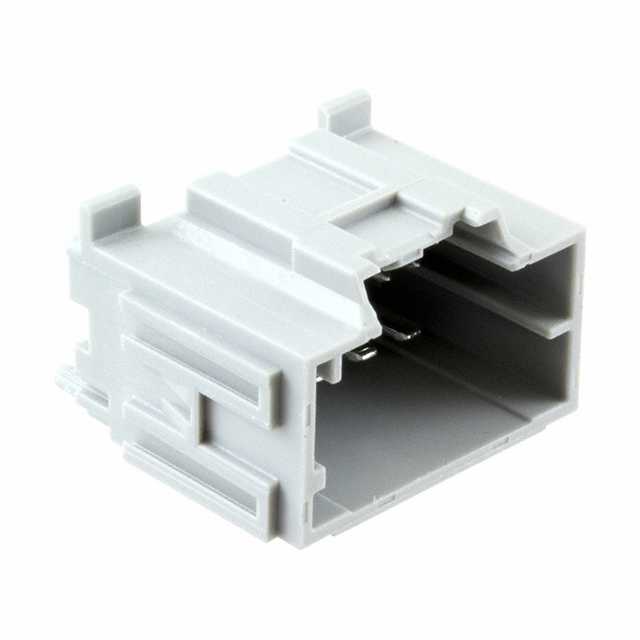

CONN HEADER VERT 10POS

Search across all available documentation for this part.

Active

Molex

CONN HEADER VERT 10POS

Technical Specifications

Parameters and characteristics for this part

Specification	0346950101

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.117 in
Contact Length - Post	2.97 mm
Contact Material	Copper Alloy
Contact Shape	Square, Rectangular
Contact Type	Male Pin, Male Blade
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Gray
Insulation Height	28.04 mm
Insulation Height	1.104 in
Mounting Type	Through Hole
Number of Positions	10
Number of Positions [custom]	6
Number of Positions [custom]	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Row Spacing - Mating	6.3 mm
Row Spacing - Mating	0.248 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	500 V

Part	Style	Contact Type	Voltage Rating	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Contact Material	Shrouding	Insulation Color	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Applications	Mounting Type
Molex 0346950101	Board to Cable/Wire	Male Blade Male Pin	500 V	0.117 in	2.97 mm	Solder	6.3 mm	0.248 "	Latch Holder	2	100 °C	-40 °C	Header	Board Guide Solder Retention	28.04 mm	1.104 in	Rectangular Square	Tin	All	Copper Alloy	Shrouded - 4 Wall	Gray	10	6	4	Automotive	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 10 (6 + 4 Power) position
