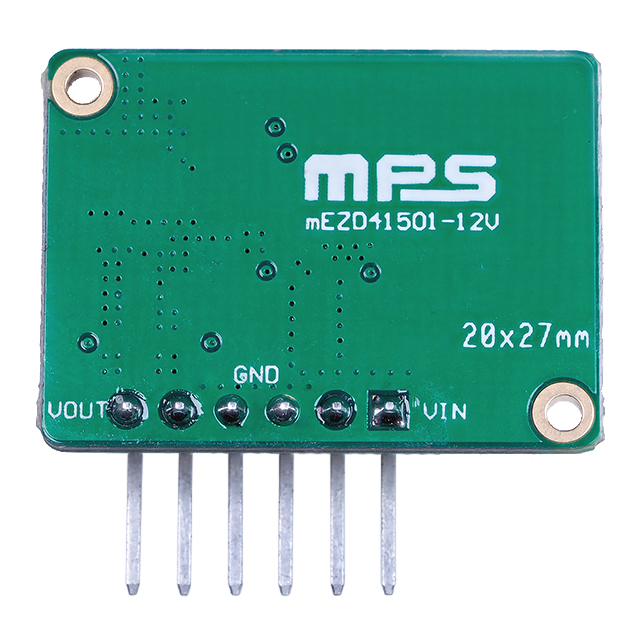

MEZD41501A-B
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MEZD41501A-B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 96.7 % |
| Features | OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 6-SIP Module |
| Size / Dimension [x] | 1.06 " |
| Size / Dimension [x] | 27 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [z] | 5.4 mm |
| Size / Dimension [z] | 0.21 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 10 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.58 | |
| 5 | $ 14.47 | |||
| 10 | $ 14.36 | |||
| 30 | $ 14.14 | |||
| 60 | $ 13.70 | |||
| 90 | $ 12.37 | |||
| 240 | $ 12.15 | |||
| 450 | $ 11.93 | |||
Description
General part information
MEZD41501 Series
Non-Isolated PoL Module DC DC Converter 1 Output 12V 1A 2.7V - 10V Input
