Technical Specifications
Parameters and characteristics for this part
| Specification | DT150PW360D |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.05 m |
| Cord Length | 41.34 in |
| Current - Output (Max) [Max] | 4.17 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 150 W |
| Region Utilized | International |
| Size / Dimension [x] | 170 mm, 6.7 in |
| Size / Dimension [y] | 3.35 in, 85 mm |
| Size / Dimension [z] | 44 mm, 1.73 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 36 V |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.67 | |
| 10 | $ 93.05 | |||
| 25 | $ 89.18 | |||
Description
General part information
DT150PW360 Series

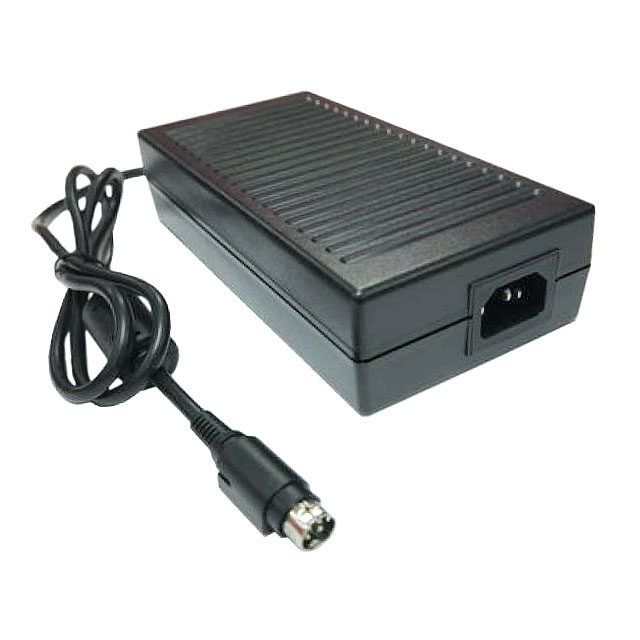

36V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
