19301320428

Active

HARTING Technology Group

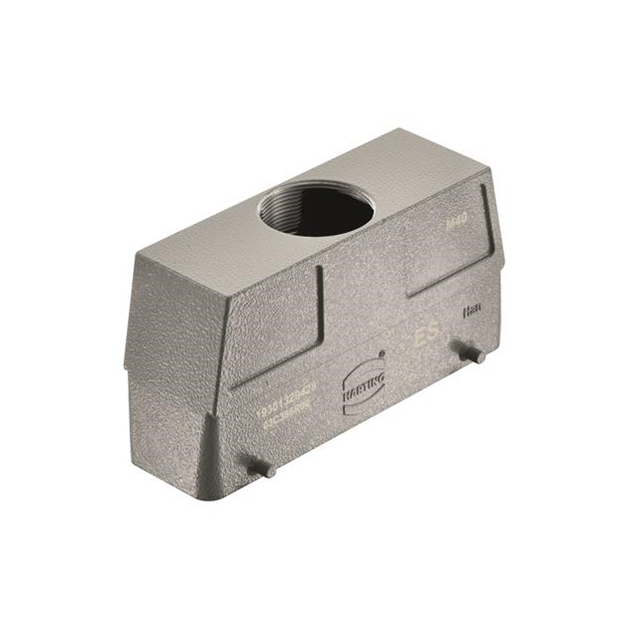

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 32B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 32B

Technical Specifications

Parameters and characteristics for this part

Specification	19301320428

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	L32B
Size / Dimension [x]	5.819 in
Size / Dimension [x]	147.8 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.972 in
Size / Dimension [z]	75.5 mm
Style	Top Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Color	Ingress Protection	Housing Material	Housing Finish	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Style	Connector Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension
HARTING Technology Group 19301320541	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	L32B	147.8 mm	43 mm	5.819 in	76 mm	1.693 in	2.992 in	Side Entry	Hood
HARTING Technology Group 19301320272	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	L32B	171 mm		6.732 in		2.811 in	3.181 "	Side Entry Dual	Base - Box Mount	Feed Through	80.8 mm	71.4 mm
HARTING Technology Group 19301320441	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	L32B	147.8 mm		5.819 in		1.693 in	2.972 in	Top Entry	Hood		75.5 mm	43 mm
HARTING Technology Group 19301320728	125 °C	-40 °C	Locking Clip (2) on Hood	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	L32B			5.819 in		1.693 in	3.067 in	Top Entry	Hood	Cable to Cable			43 mm 77.9 mm 147.8 mm
HARTING Technology Group 19301320428	125 °C	-40 °C	Locking Clip (2) on Base Bottom	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	Powder Coated	L32B	147.8 mm		5.819 in		1.693 in	2.972 in	Top Entry	Hood		75.5 mm	43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 L32B IP65 - Dust Tight, Water Resistant
