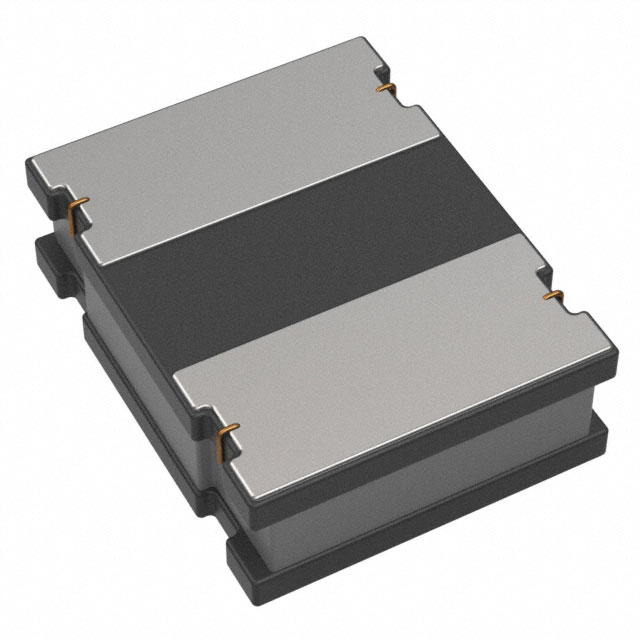

SDET32251E-3R3MS
ActiveDelta Electronics/Cyntec
FIXED IND 3.3UH 2.1A 102MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDET32251E-3R3MS
ActiveDelta Electronics/Cyntec
FIXED IND 3.3UH 2.1A 102MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDET32251E-3R3MS |
|---|---|
| Current - Saturation (Isat) | 1.2 A |
| Current Rating (Amps) | 2.1 A |
| DC Resistance (DCR) [Max] | 102 mOhm |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Unshielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.17 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.17 | ||
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 2000 | $ 0.08 | ||
Description
General part information
SDET32251E Series
3.3 µH Unshielded Inductor 2.1 A 102mOhm Max 1210 (3225 Metric)
