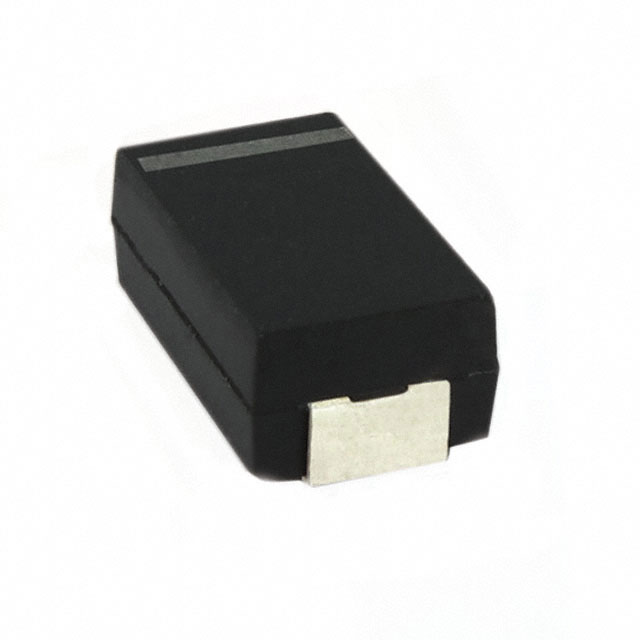

ECASD60G227M010K00
ObsoleteMurata Power Solutions Inc.
CAP ALUM POLY 220UF 20% 4V SMD
Deep-Dive with AI
Search across all available documentation for this part.
ECASD60G227M010K00
ObsoleteMurata Power Solutions Inc.
CAP ALUM POLY 220UF 20% 4V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECASD60G227M010K00 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 10 mOhm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Ripple Current @ High Frequency | 3 A |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Surface Mount Land Size [x] | 0.287 " |
| Surface Mount Land Size [x] | 7.3 mm |
| Surface Mount Land Size [y] | 4.3 mm |
| Surface Mount Land Size [y] | 0.169 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 10 | $ 1.34 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 1.75 | ||
| 10 | $ 1.34 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.72 | |||
| Tape & Reel (TR) | 2500 | $ 0.69 | ||
| 5000 | $ 0.67 | |||
| 12500 | $ 0.64 | |||
Description
General part information
ECASD60G Series
220 µF 4 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 10mOhm 1000 Hrs @ 105°C
