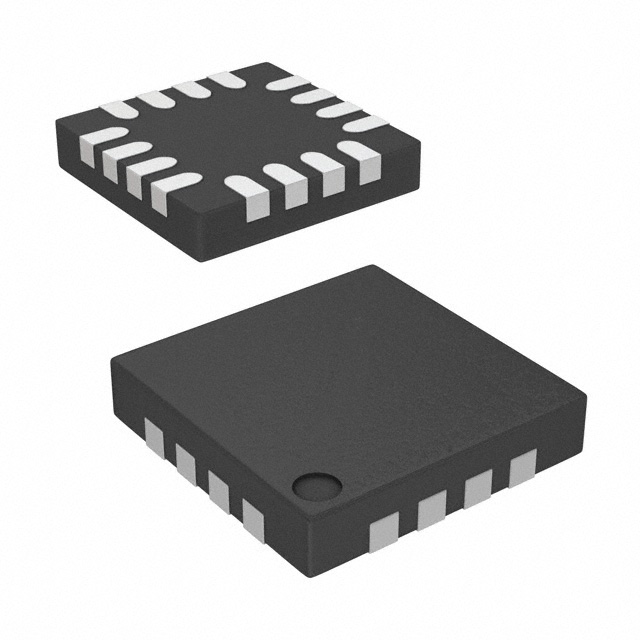

552-02SCMGI
ActiveIC CLK MULTIPLX 2:8 200MHZ 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
552-02SCMGI
ActiveIC CLK MULTIPLX 2:8 200MHZ 16QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 552-02SCMGI |
|---|---|
| Differential - Input:Output | False |
| Frequency - Max [Max] | 200 MHz |
| Input | LVCMOS |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 16-UFQFN |
| Ratio - Input:Output [custom] | 8 |
| Ratio - Input:Output [custom] | 2 |
| Supplier Device Package | 16-QFN (2.5x2.5) |
| Type | Multiplexer |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 4.10 | |
| 10 | $ 3.68 | |||
| 25 | $ 3.48 | |||
| 100 | $ 3.01 | |||
| 250 | $ 2.86 | |||
| 500 | $ 2.57 | |||
| 1000 | $ 2.16 | |||
| 2500 | $ 2.06 | |||
| 5000 | $ 1.98 | |||
Description
General part information
552-02 Series
The 552-02 is a low skew, single-input to eight-output clock buffer. The device offers a dual input with pin select for switching between two clock sources. It is part of Renesas' ClockBlocks™ family. See the 553 for a 1 to 4 low skew buffer. For more than 8 outputs see the MK74CBxxx Buffalo™ series of clock drivers. Renesas makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.
