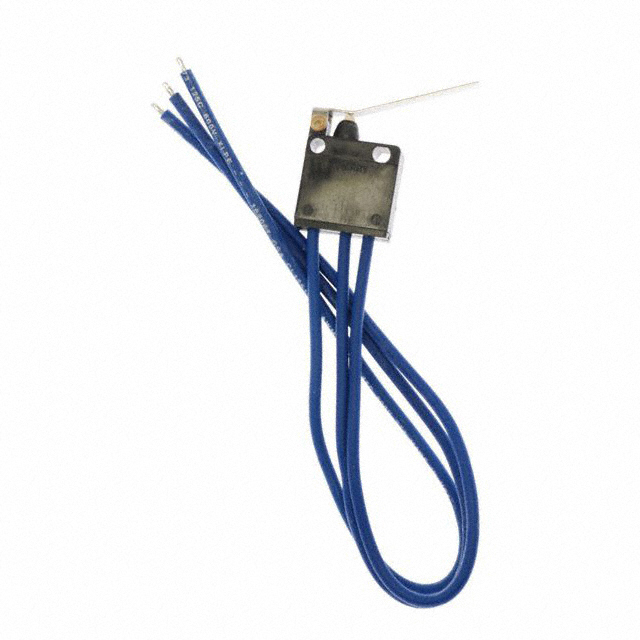

E72-40HT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
E72-40HT
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E72-40HT |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.6 mm |
| Differential Travel | 0.025 in |
| Electrical Life | 6000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 67 gf |
| Operating Position | 0.595 in |
| Operating Position | 15.13 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.1 in |
| Overtravel | 2.54 mm |
| Pretravel | 0.275 in |
| Pretravel | 7 mm |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
E72-40H Series
Switch SPDT Chassis Mount
