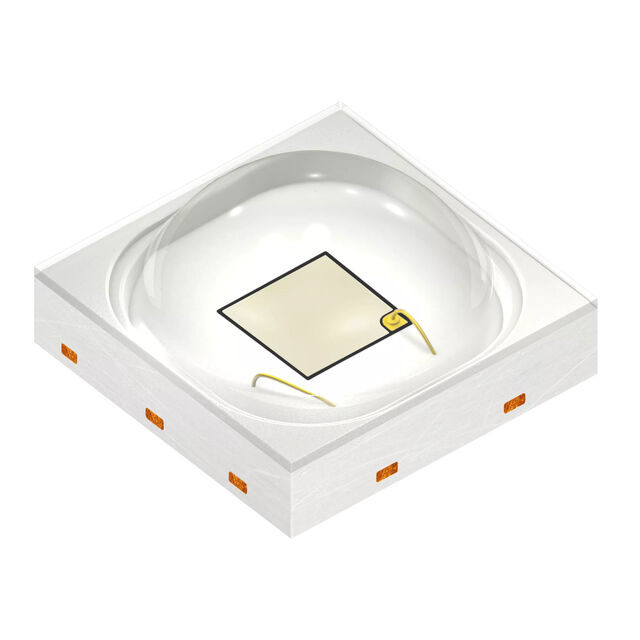

GW QSSPA1.PM-LGLN-XX52-1-350-R18
Activeams-OSRAM USA INC.
LED OSCONIQ COOL WHT 5700K 1212
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW QSSPA1.PM-LGLN-XX52-1-350-R18
Activeams-OSRAM USA INC.
LED OSCONIQ COOL WHT 5700K 1212
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW QSSPA1.PM-LGLN-XX52-1-350-R18 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 1.3 A |
| Current - Test | 350 mA |
| Flux @ 85°C, Current - Test | 160 lm |
| Flux @ 85°C, Current - Test [Max] | 180 lm |
| Flux @ 85°C, Current - Test [Min] | 140 lm |
| Height - Seated (Max) [Max] | 1.73 mm |
| Height - Seated (Max) [Max] [z] | 0.068 " |
| Lumens/Watt @ Current - Test | 160 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 1212 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.85 V |
GW QSSPA1.PM Series
| Part | Flux @ 85°C, Current - Test [Min] | Flux @ 85°C, Current - Test [Max] | Flux @ 85°C, Current - Test | Current - Test | Color | Voltage - Forward (Vf) (Typ) | Package / Case | Package / Case | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) | Supplier Device Package | Current - Max [Max] | Viewing Angle | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | CCT (K) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ams-OSRAM USA INC. | 140 lm | 180 lm | 160 lm | 350 mA | Warm White | 2.85 V | 1212 | 3030 Metric | 141 lm/W | 70 | 1212 | 1.3 A | 120 ° | 0.118 in | 3 mm | 3 mm | 0.118 in | 0.068 " | 1.73 mm | 2700 K | Surface Mount |
ams-OSRAM USA INC. | 140 lm | 180 lm | 160 lm | 350 mA | Cool White | 2.85 V | 1212 | 3030 Metric | 160 lm/W | 70 | 1212 | 1.3 A | 120 ° | 0.118 in | 3 mm | 3 mm | 0.118 in | 0.068 " | 1.73 mm | 5700 K | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.31 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 1.31 | ||
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| Tape & Reel (TR) | 900 | $ 0.56 | ||
| 1800 | $ 0.53 | |||
| 2700 | $ 0.52 | |||
| 4500 | $ 0.50 | |||
| 6300 | $ 0.49 | |||
| 9000 | $ 0.48 | |||
Description
General part information
GW QSSPA1.PM Series
LED Lighting OSCONIQ® P 3030 White, Cool 5700K 2.85V 350mA 120° 1212 (3030 Metric)
