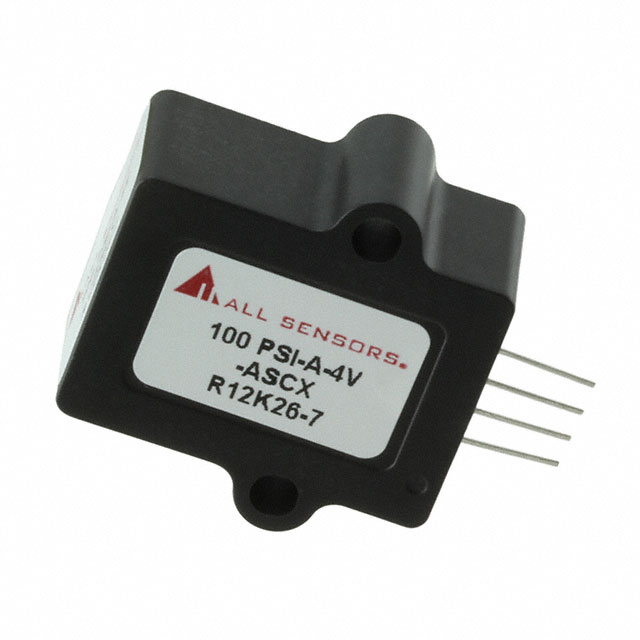

100 PSI-A-4V-ASCX

Active

Amphenol All Sensors Corporation

SENSOR 100PSIA 0.19" 4.75V 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 100PSIA 0.19" 4.75V 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	100 PSI-A-4V-ASCX

Accuracy	0.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	1034.21 kPa
Maximum Pressure [Max]	150 PSI
Mounting Type	Through Hole
Operating Pressure	689.48 kPa
Operating Pressure	100 PSI
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Output [Max]	4.75 V
Output [Min]	0.25 V
Output Type	Wheatstone Bridge
Package / Case	4-SIP
Port Size	Male
Port Size	0.19 "
Port Size	4.8 mm
Port Style	Barbless
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Output [Max]	Output [Min]	Applications	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Termination Style	Port Size	Port Size	Port Size	Features	Port Style	Package / Case	Output Type	Mounting Type
Amphenol All Sensors Corporation 30 PSI-A-4V-ASCX	4.75 V	0.25 V	Board Mount	0.5 %	4.5 V	5.5 V	4-SIP	-25 °C	105 ░C	100 PSI	689.48 kPa	206.84 kPa	30 PSI	PC Pin	Male	0.19 "	4.8 mm	Amplified Output Temperature Compensated	Barbless	4-SIP	Wheatstone Bridge	Through Hole
Amphenol All Sensors Corporation 100 PSI-A-4V-ASCX	4.75 V	0.25 V	Board Mount	0.5 %	4.5 V	5.5 V	4-SIP	-25 °C	105 ░C	150 PSI	1034.21 kPa	689.48 kPa	100 PSI	PC Pin	Male	0.19 "	4.8 mm	Amplified Output Temperature Compensated	Barbless	4-SIP	Wheatstone Bridge	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 100PSI (689.48kPa) Absolute Male - 0.19" (4.8mm) Tube 0.25 V ~ 4.75 V 4-SIP
