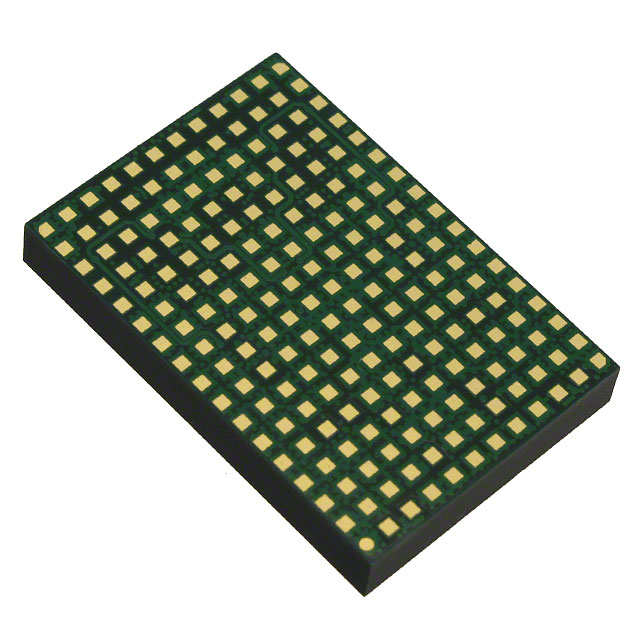

LTM9004IV-AC#PBF

Obsolete

Analog Devices

IC RCVR SIGNAL 14BIT 204-LGA

Search across all available documentation for this part.

Obsolete

Analog Devices

IC RCVR SIGNAL 14BIT 204-LGA

Technical Specifications

Parameters and characteristics for this part

Specification	LTM9004IV-AC#PBF

Frequency [Max]	2.7 GHz
Frequency [Min]	700 MHz
Function	Direct Conversion Subsystem
Mounting Type	Surface Mount
Package / Case	204-BLGA
RF Type	General Purpose
Secondary Attributes	9.42 MHz
Supplier Device Package	204-LGA (22x15)

Part	Function	Frequency [Max]	Frequency [Min]	Package / Case	Mounting Type	Secondary Attributes	RF Type	Supplier Device Package	Secondary Attributes
Analog Devices LTM9004CV-AD#PBF	Direct Conversion Subsystem	2.7 GHz	700 MHz	204-BLGA	Surface Mount	20MHz Low Pass Filter	General Purpose	204-LGA (22x15)
Analog Devices LTM9004IV-AA#PBF	Direct Conversion Subsystem	2.7 GHz	700 MHz	204-BLGA	Surface Mount	1.92MHz Low Pass Filter	General Purpose	204-LGA (22x15)
Analog Devices LTM9004CV-AA#PBF	Direct Conversion Subsystem	2.7 GHz	700 MHz	204-BLGA	Surface Mount	1.92MHz Low Pass Filter	General Purpose	204-LGA (22x15)
Analog Devices LTM9004IV-AD#PBF	Direct Conversion Subsystem	2.7 GHz	700 MHz	204-BLGA	Surface Mount	20MHz Low Pass Filter	General Purpose	204-LGA (22x15)
Analog Devices LTM9004IV-AC#PBF	Direct Conversion Subsystem	2.7 GHz	700 MHz	204-BLGA	Surface Mount		General Purpose	204-LGA (22x15)	9.42 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 188.90

General part information

RF IC Direct Conversion Subsystem General Purpose 700MHz ~ 2.7GHz 9.42MHz Low Pass Filter 204-LGA (22x15)
