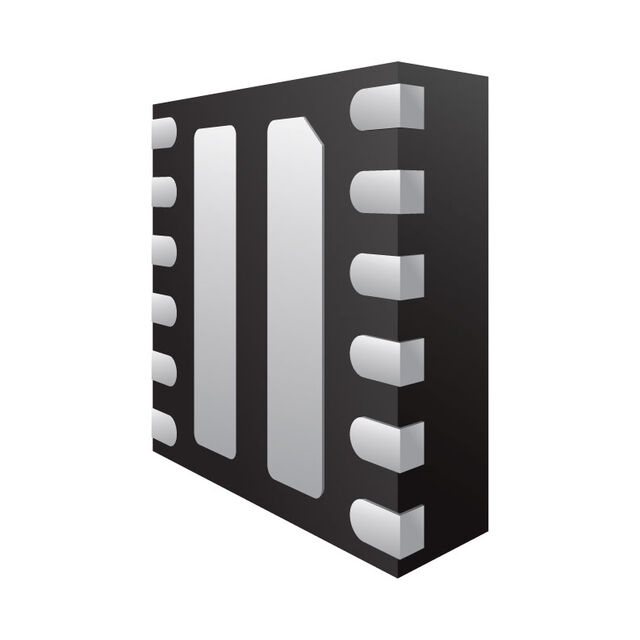

HS2950P.M

Active

Semtech Corporation

29V 5A LOAD PROTECTION HOTSWITCH

Search across all available documentation for this part.

Active

Semtech Corporation

29V 5A LOAD PROTECTION HOTSWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	HS2950P.M

Current - Output (Max) [Max]	5 A
Fault Protection	Over Voltage, Current Limiting (Fixed), Over Temperature, UVLO
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	12-UFDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	25 mOhm
Supplier Device Package	12-DFN (3x3)
Switch Type	General Purpose
Voltage - Load [Max]	29 V
Voltage - Load [Min]	2.7 V
Voltage - Supply (Vcc/Vdd)	False

Part	Output Configuration	Ratio - Input:Output [custom]	Interface	Fault Protection	Switch Type	Input Type	Package / Case	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Voltage - Supply (Vcc/Vdd)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Rds On (Typ)	Mounting Type	Features	Number of Outputs
Semtech Corporation HS2950P.M	High Side	1:1	On/Off	Current Limiting (Fixed) Over Temperature Over Voltage UVLO	General Purpose	Non-Inverting	12-UFDFN Exposed Pad	2.7 V	29 V	12-DFN (3x3)		N-Channel	85 °C	-40 °C	5 A	25 mOhm	Surface Mount	Status Flag	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 N-Channel 5A 12-DFN (3x3)
