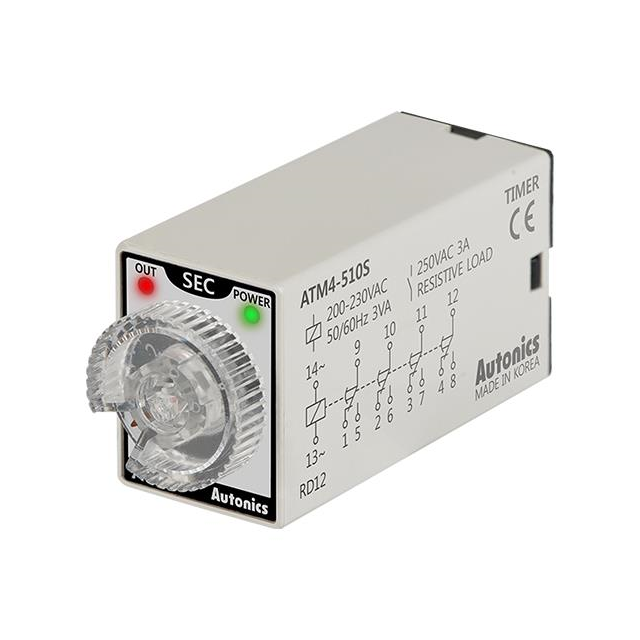

ATM4-510S

Active

AUTONICS

RELAY TIME DELAY 10SEC 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 10SEC 3A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage - Supply	Mounting Type	Function	Relay Type	Contact Rating @ Voltage	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Circuit	Circuit	Timing Initiate Method
AUTONICS ATM4-560S	Plug In 14 Pin	220 VAC	Socketable	On-Delay	Mechanical Relay	3 A 24 VDC 250 VAC	60 Sec	6 Sec	Hand Dial	4 Form C	4PDT	Input Voltage
AUTONICS ATM4-530S	Plug In 14 Pin	220 VAC	Socketable	On-Delay	Mechanical Relay	3 A 24 VDC 250 VAC	30 Sec	3 Sec	Hand Dial	4 Form C	4PDT	Input Voltage
AUTONICS ATM4-510S	Plug In 14 Pin	220 VAC	Socketable	On-Delay	Mechanical Relay	3 A 24 VDC 250 VAC	10 s	1 Sec	Hand Dial	4 Form C	4PDT	Input Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.00

General part information

On-Delay Time Delay Relay 4PDT (4 Form C) 1 Sec ~ 10 Sec Delay 3A @ 250VAC/24VDC Socketable
