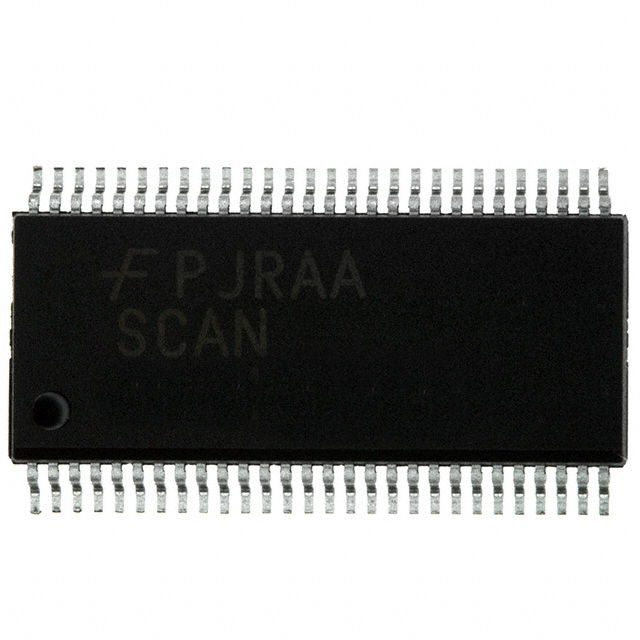

SCAN18373TSSC

Obsolete

ON Semiconductor

TRANSPARENT LATCH 9-BIT 56-SSOP

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TRANSPARENT LATCH 9-BIT 56-SSOP

Technical Specifications

Parameters and characteristics for this part

Specification	SCAN18373TSSC

Circuit	9
Current - Output High, Low [custom]	24 mA
Current - Output High, Low [custom]	48 mA
Delay Time - Propagation	2.5 ns
Independent Circuits	2
Logic Type	D-Type Transparent Latch
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Tri-State
Package / Case	0.295 in
Package / Case	56-BSSOP
Package / Case	7.5 mm
Supplier Device Package	56-SSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Independent Circuits	Circuit	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Package / Case	Delay Time - Propagation
ON Semiconductor SCAN18373TSSC	D-Type Transparent Latch	24 mA	48 mA	4.5 V	5.5 V	2	9	Tri-State	85 °C	-40 °C	Surface Mount	56-SSOP	0.295 in	56-BSSOP	7.5 mm	2.5 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Type Transparent Latch 2 Channel 9:9 IC Tri-State 56-SSOP
