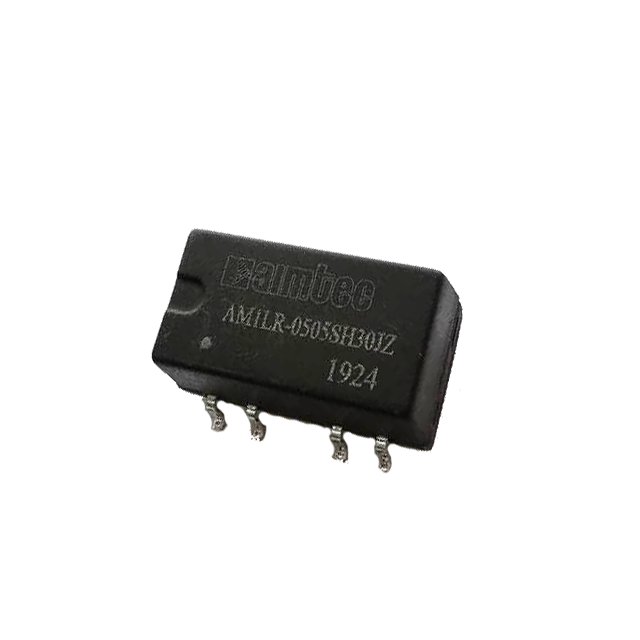

AM1LR-0505SH30JZ
Obsoleteaimtec
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1LR-0505SH30JZ
Obsoleteaimtec
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1LR-0505SH30JZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 69 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [z] | 0.29 " |
| Size / Dimension [z] | 7.3 mm |
| Supplier Device Package | SMD |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AM1LR Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.75V - 5.25V Input
