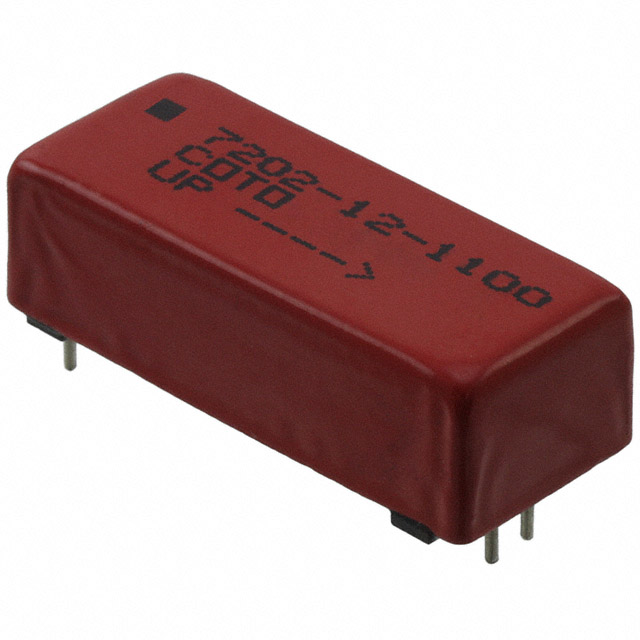

7202-12-1100
ObsoleteCoto Technology
RELAY REED DPST 1A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7202-12-1100 |
|---|---|
| Coil Current | 35.2 mA |
| Coil Resistance | 340 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 1 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 1 ms |
| Switching Voltage | 500 VAC, 500 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.68 | |
| 10 | $ 42.52 | |||
| 25 | $ 40.30 | |||
| 50 | $ 38.69 | |||
Description
General part information
7202 Series
RELAY REED DPST 1A 12V
