02183000-000

Active

TE Connectivity Measurement Specialties

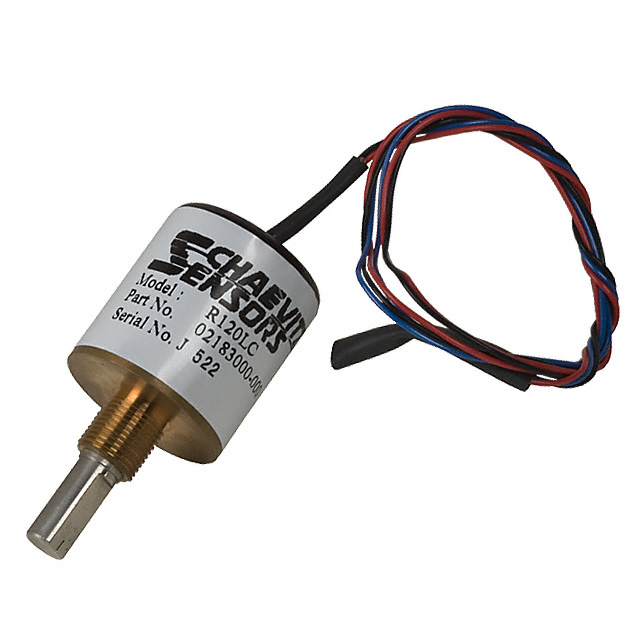

SENSOR ROTARY 120DEG WIRE LEADS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR ROTARY 120DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	02183000-000

Actuator Type	Round Shaft
For Measuring	Rotary Position
Linearity	0.5 %
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Output Signal	Clockwise Increase
Package / Case	Cylinder
Rotation Angle - Electrical, Mechanical [Max]	120 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Inductive
Termination Style	Wire Leads

Part	Output Signal	Linearity	Operating Temperature [custom]	Mounting Type	For Measuring	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Termination Style	Package / Case	Actuator Type	Technology	Output	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Measurement Specialties 02181600-120	Clockwise Increase	0.25 %	-18 °C 77 °C	Custom	Rotary Position	0 °	120 °	Wire Leads	Module	Flatted Shaft	Inductive	Analog Voltage
TE Connectivity Measurement Specialties 02183000-000	Clockwise Increase	0.5 %			Rotary Position	0 °	120 °	Wire Leads	Cylinder	Round Shaft	Inductive	Analog Voltage	85 °C	-40 °C
