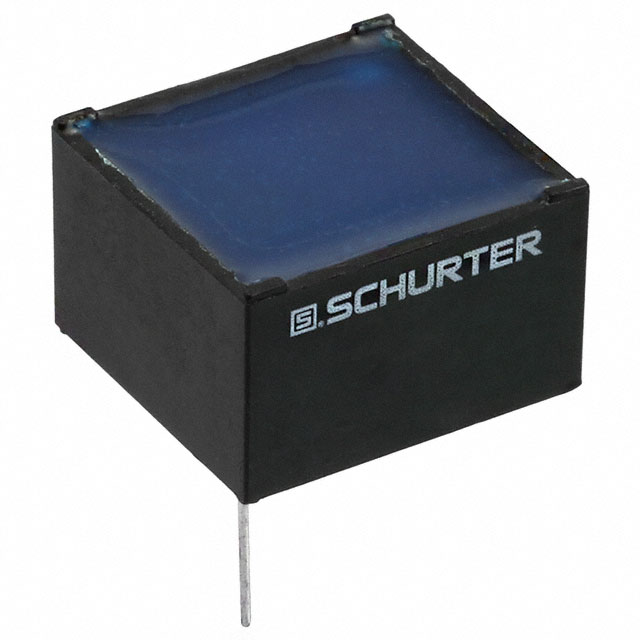

DS1-175-0002
ActiveSCHURTER Inc.
CMC 630MA 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1-175-0002
ActiveSCHURTER Inc.
CMC 630MA 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1-175-0002 |
|---|---|
| Current Rating (Max) [Max] | 630 mA |
| DC Resistance (DCR) (Max) [Max] | 500 mOhm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 17.5 mm |
| Size / Dimension [x] | 0.689 in |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [y] | 0.63 in |
| Voltage Rating - DC | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.48 | |
| 50 | $ 4.64 | |||
| 100 | $ 4.12 | |||
Description
General part information
DS1-175 Series
2 Line Common Mode Choke Through Hole 630mA DCR 500mOhm
