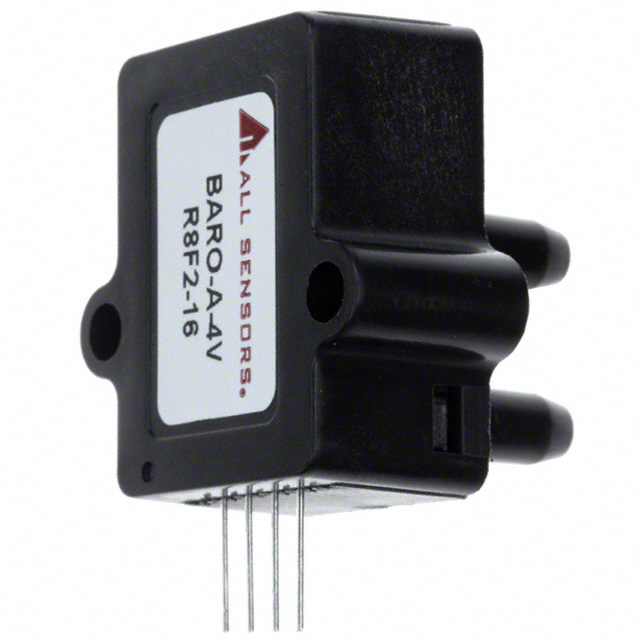

BARO-A-4V-REF-PRIME

Obsolete

Amphenol All Sensors Corporation

SENSOR 15.95PSIA 0.19" 4.25V

Deep-Dive with AI

Search across all available documentation for this part.

BARO-A-4V-REF-PRIME

Obsolete

Amphenol All Sensors Corporation

SENSOR 15.95PSIA 0.19" 4.25V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BARO-A-4V-REF-PRIME

Accuracy	2 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	60 PSI
Maximum Pressure [Max]	413.69 kPa
Mounting Type	Through Hole
Operating Pressure [Max]	15.95 PSI
Operating Pressure [Max]	110 kPa
Operating Pressure [Min]	8.7 PSI
Operating Pressure [Min]	0.6 bar
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.25 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	4-SIP
Port Size	Male, Dual, Tube
Port Size [x]	0.19 "
Port Size [x]	4.83 mm
Port Style	Barbless
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	5.5 V

BARO-A Series

Part	Features	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Max]	Output [Min]	Port Style	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Output Type	Mounting Type	Termination Style	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply	Port Size [x]	Port Size	Port Size [x]	Voltage - Supply [Max]	Voltage - Supply [Min]
Amphenol All Sensors Corporation BARO-A-PRIME-MINI	Temperature Compensated	2 %	310.26 kPa	45 PSI	95.7 mV	52.2 mV	No Port	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Wheatstone Bridge	Through Hole	PC Pin	Board Mount	-25 °C	85 °C	4-SIP Module	16 VDC
Amphenol All Sensors Corporation BARO-A-4V-PRIME-REF	Temperature Compensated	2 %	413.69 kPa	60 PSI	4.25 V	0 mV	Barbless	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Analog Voltage	Through Hole		Board Mount	-40 °C	125 °C	4-SIP		0.19 "	Dual Male Tube	4.83 mm	16 V	5.5 V
Amphenol All Sensors Corporation BARO-A-4V-MINI-PRIME	Amplified Output Temperature Compensated	2 %			4.25 V	0.25 V	Barbless	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Analog Voltage	Through Hole	PC Pin	Board Mount	-25 °C	85 °C	4-SIP Module		0.08 "		2.03 mm	5.5 V	4.5 V
Amphenol All Sensors Corporation BARO-A-4V-MINI	Amplified Output Temperature Compensated	2 %			4.25 V	0.25 V	Barbless	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Analog Voltage	Through Hole	PC Pin	Board Mount	-25 °C	85 °C	4-SIP Module		0.08 "		2.03 mm	5.5 V	4.5 V
Amphenol All Sensors Corporation BARO-A-4V-PRIME	Amplified Output Temperature Compensated	2 %	413.69 kPa	60 PSI	4.25 V	0.25 V	Barbless	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Analog Voltage	Through Hole	PC Pin	Board Mount	-40 °C	125 °C	4-SIP Module		0.08 "		2.03 mm	5.5 V	4.5 V
Amphenol All Sensors Corporation BARO-A-4V-REF-PRIME	Temperature Compensated	2 %	413.69 kPa	60 PSI	4.25 V	0 mV	Barbless	8.7 PSI	15.95 PSI	110 kPa	0.6 bar	Analog Voltage	Through Hole		Board Mount	-40 °C	125 °C	4-SIP		0.19 "	Dual Male Tube	4.83 mm	16 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BARO-A Series

Pressure Sensor 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) Absolute Male - 0.19" (4.83mm) Tube, Dual 0 V ~ 4.25 V 4-SIP
