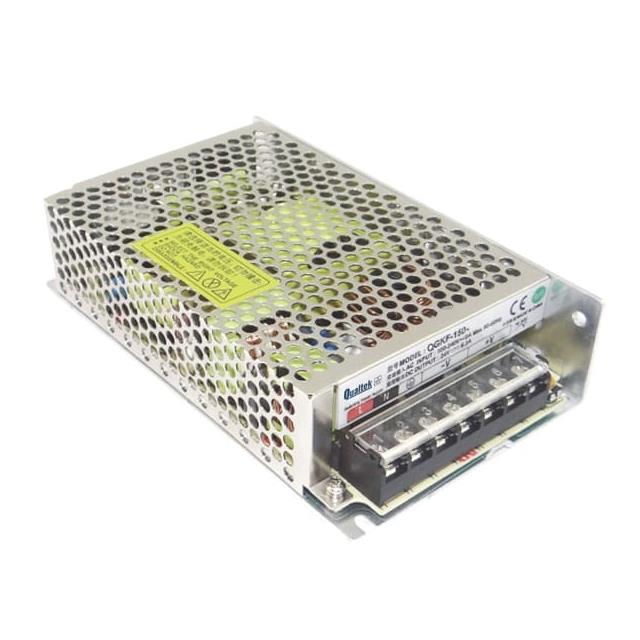

QGKF-150-15

Active

Qualtek

AC/DC CONVERTER 15V 150W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 15V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	QGKF-150-15

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	10 A
Efficiency	87 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	98.3 mm
Size / Dimension [y]	3.87 "
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Power (Watts)	Efficiency	Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Minimum Load Required	Approval Agency	Current - Output 1	Features	Mounting Type	Applications	Voltage - Input [Min]	Voltage - Input [Max]
Qualtek QGKF-150-12	150 W	86 %	Conformal Coated Enclosed	1	1.5 "	38 mm	6.3 "	160 mm	98.3 mm	3.87 "	12 V	-20 °C	70 °C	3000 V		CB CE cURus	12.5 A	Adjustable Output PFC Universal Input	Chassis Mount	ITE (Commercial)	90 VAC	264 VAC
Qualtek QGKF-150-15	150 W	87 %	Conformal Coated Enclosed	1	1.5 "	38 mm	6.3 "	160 mm	98.3 mm	3.87 "	15 V	-20 °C	70 °C	3000 V		CB CE cURus	10 A	Adjustable Output PFC Universal Input	Chassis Mount	ITE (Commercial)	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 71.31

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
