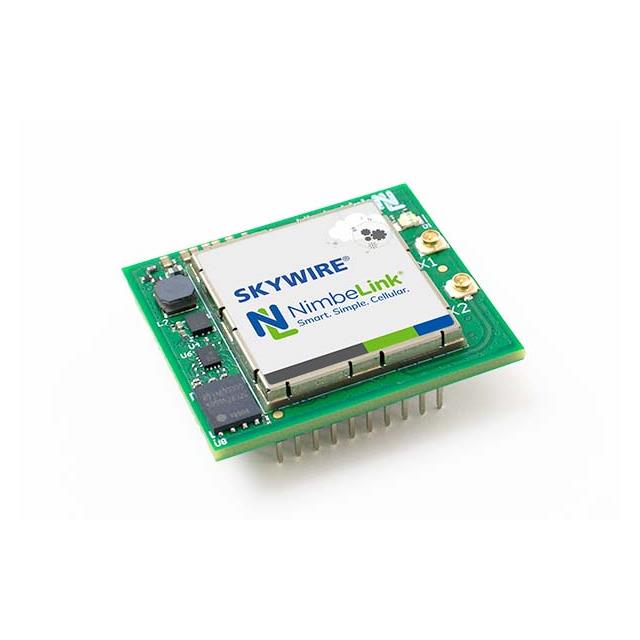

NL-SW-LTE-SRC7611-4NGV
ObsoleteNimbeLink, LLC
RF TXRX MOD CELL U.FL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NL-SW-LTE-SRC7611-4NGV |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 150 Mbps |
| Frequency [Max] | 2.2 GHz |
| Frequency [Min] | 617 MHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 23 dBmW |
| Protocol | 4G LTE CAT-4 (Verizon) |
| RF Family/Standard | Cellular |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART, USB |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NL-SW-LTE-SRC7611 Series
Cellular 4G LTE CAT-4 (Verizon) Transceiver Module 617MHz ~ 2.2GHz Antenna Not Included, U.FL Through Hole
