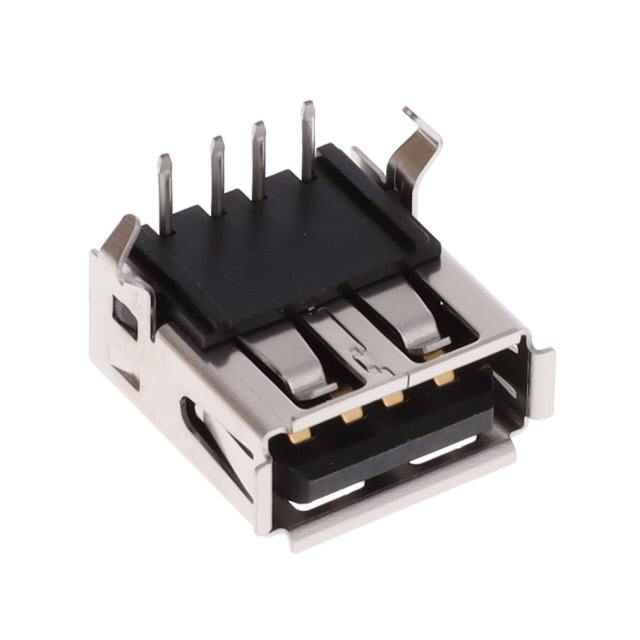

GSB12121031EU

Active

Amphenol ICC (Commercial Products)

USB2.0 A RECEPT,RIGHT ANGLE TYPE

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

USB2.0 A RECEPT,RIGHT ANGLE TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	GSB12121031EU

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Connector Type	Number of Ports	Mounting Feature	Gender	Termination	Mating Cycles	Shielding	Voltage - Rated	Specifications	Shell/Shielding Material	Material Flammability Rating	Insulation Color	Number of Contacts [custom]
Amphenol ICC (Commercial Products) GSB12121031EU	Through Hole Right Angle	85 °C	-40 °C	Gold	USB-A (USB TYPE-A)	1	Horizontal	Receptacle	Solder	1500	Shielded	30 V	USB 2.0	Copper Alloy	UL94 V-0	Black	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
