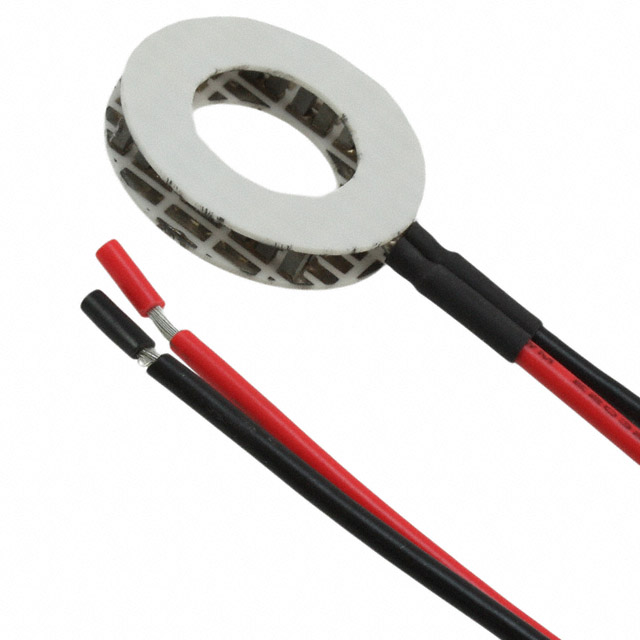

PELTIER RH14,14,10,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
71062-514
ActiveLaird Thermal Systems, Inc.
PELTIER RH14,14,10,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 71062-514 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.7 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 3.7 W |
| Resistance | 0.38 Ohms |
| Size / Dimension [diameter] | 25.78 mm, 13.97 mm |
| Voltage - Max [Max] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 56.44 | |
| 20 | $ 51.54 | |||
| 100 | $ 47.30 | |||
Description
General part information
71062 Series
Peltier Module 3.7W @ 25°C 3.9 A 80°C
