D9YUYUS1FISCU
ActiveFiber Instrument Sales

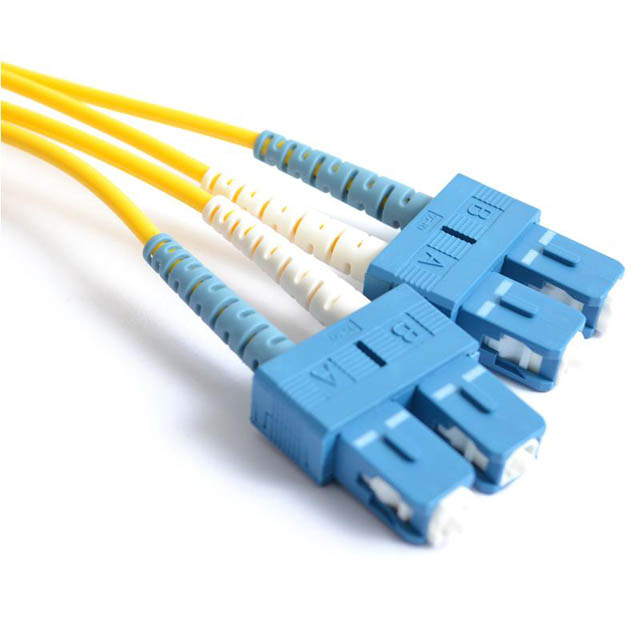

FIS DUPLEX 3MM SM 9/125 ULTRA SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D9YUYUS1FISCU
ActiveFiber Instrument Sales
FIS DUPLEX 3MM SM 9/125 ULTRA SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D9YUYUS1FISCU |
|---|---|
| 1st Connector | SC/UPC (2) |
| 2nd Connector | SC/UPC (2) |
| Cable Diameter [diameter] | 3 mm |
| Cable Diameter [diameter] | 0.12 in |
| Cable Type | Bend Insensitive Fiber (BIF) |
| Color - Cable | Yellow |
| Color - Connectors | Blue, White |
| Fiber Type | 9/125 |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall [x] | 1 m |
| Length - Overall [x] | 3.3 ft |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Type | Singlemode, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 9.75 | |
Description
General part information
D9YUYUS Series
Cable Fiber Optic SC/UPC (2) To SC/UPC (2) 9/125 3.3' (1.0m)
