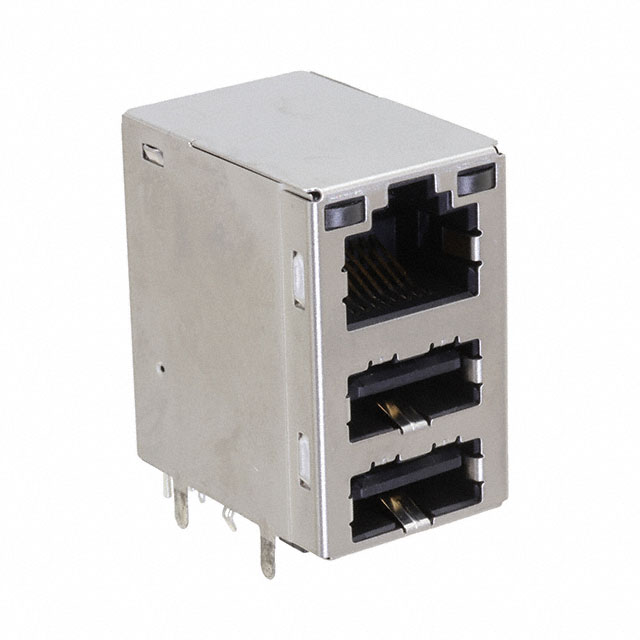

MTJ-DUSB-88JX1-FS-L29-M339Y

Active

Adam Tech

RJ45+2*USB2.0,1000M,SURGE 2KV&6K

Search across all available documentation for this part.

Active

Adam Tech

RJ45+2*USB2.0,1000M,SURGE 2KV&6K

Technical Specifications

Parameters and characteristics for this part

Specification	MTJ-DUSB-88JX1-FS-L29-M339Y

Connector Type	RJ45 with USB A, Dual
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Board Lock, Solder Retention
Height Above Board	31 mm
Height Above Board	1.22 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Stainless Steel
Shielding	Shielded
Tab Direction	Up
Termination	Solder

Part	Contact Finish Thickness	Connector Type	Features	Contact Material	Number of Ports	Number of Positions/Contacts	Shielding	Orientation	Termination	LED Color	Housing Material	Number of Rows	Tab Direction	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Number of Cores per Jack	Height Above Board	Height Above Board
Adam Tech MTJ-DUSB-88JX1-FS-LH	Flash	Jack with USB A Dual	Board Lock Solder Retention	Brass Phosphor Bronze	1	8p8c (RJ45 Ethernet)	Shielded	90 °	Solder	Green Yellow	Polybutylene Terephthalate (PBT) Glass Filled	1	Up	Gold	Through Hole	85 °C	-40 °C
Adam Tech MTJ-DUSB-88JX1-FS-L29-M339Y	Flash	Dual RJ45 with USB A	Board Lock Solder Retention	Phosphor Bronze	1		Shielded	90 °	Solder	Green Yellow	Polybutylene Terephthalate (PBT) Glass Filled	1	Up	Gold	Through Hole	85 °C	-40 °C	Stainless Steel	8	31 mm	1.22 in
